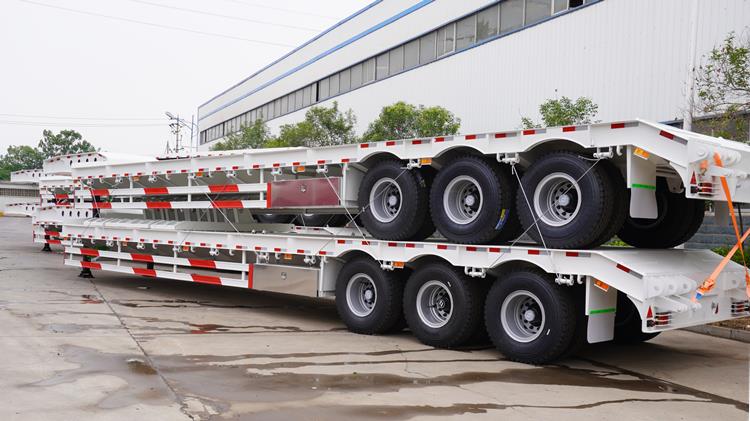

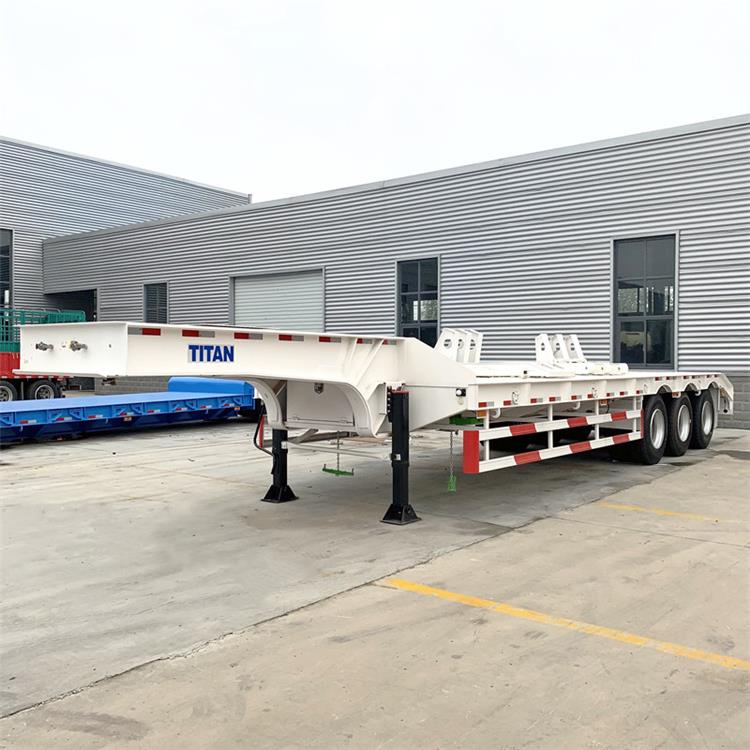

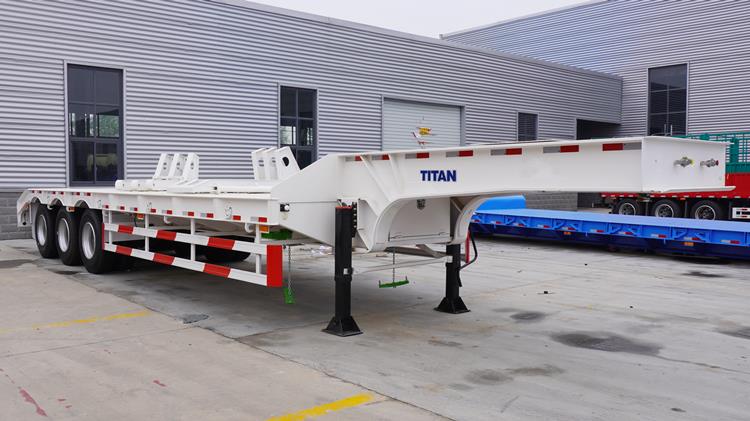

TITAN 3 axle lowbed trailer are widely used in heavy machines transportation.
TITAN 3 axle lowbed trailer can satisfy the concentrated force, the anti bump, the distortion resistance and adopts HG60 High Strength Steel Material. we use it to make sure that our TITAN tri axle low loader truck is with a long service life and to avoid unnecessary maintenance.
3 Axle Lowbed Trailer for Sale with Dimensions, Height, Capacity
3 Axle Lowbed Trailer for Sale with Dimensions, Height, Capacity
3 Axle Lowbed Trailer for Sale with Dimensions, Height, Capacity
Overall dimension: 16000mm * 3000mm *3400mm
Loading capacity(T): 40-100T
Axle: 13T/16T, FUWA / BPW / TITAN Brand
Rim: 8.0-20
Tire: 11.00R20
Suspension: Mechanical suspension
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
Main beam: Height: 500mm, Upper plate: 20mm, Middle plate: 12mm, Lower plate: 20mm, Material: Q345B steel.
Bottom Platform: 5mm thick checkered plate
Ramp: Spring ramp
Gooseneck: Optional
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
1. Main beam adopts HG high strength steel, with high loading capacity.

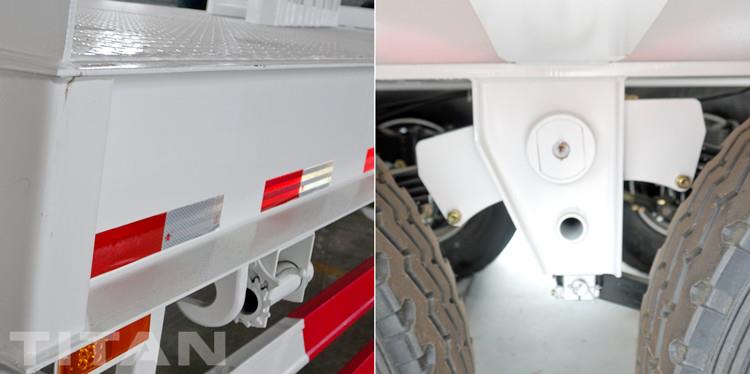

2. Side beam adopt “H” steel, the durable design avoid the side beam to have the deformation.
3. The loading ramps are made by high strength steel, with high loading capacity, which will not happen to the deformation when carrying heavy equipment.
4. polyurethane paint, with a long service life, and avoid the vehicle getting rust.
5. World famous brand spare part, ensure high quality and save costs.
Through this video below, you can learn about different types of lowbed semi-trailers, as well as the process, testing, packaging and customer feedback, etc.
