Low bed trailer is a type of semi-trailer, which is characterized by a low platform height and is usually used to transport goods with a high height, such as building materials, large machinery and equipment, engineering vehicles, etc.

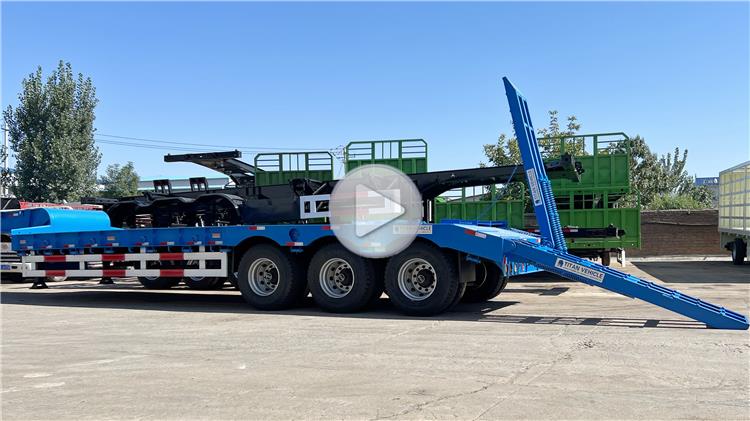

Low Bed Trailer 80 Tons for Sale Transport to Excavator
Low Bed Trailer 80 Tons for Sale Transport to Excavator

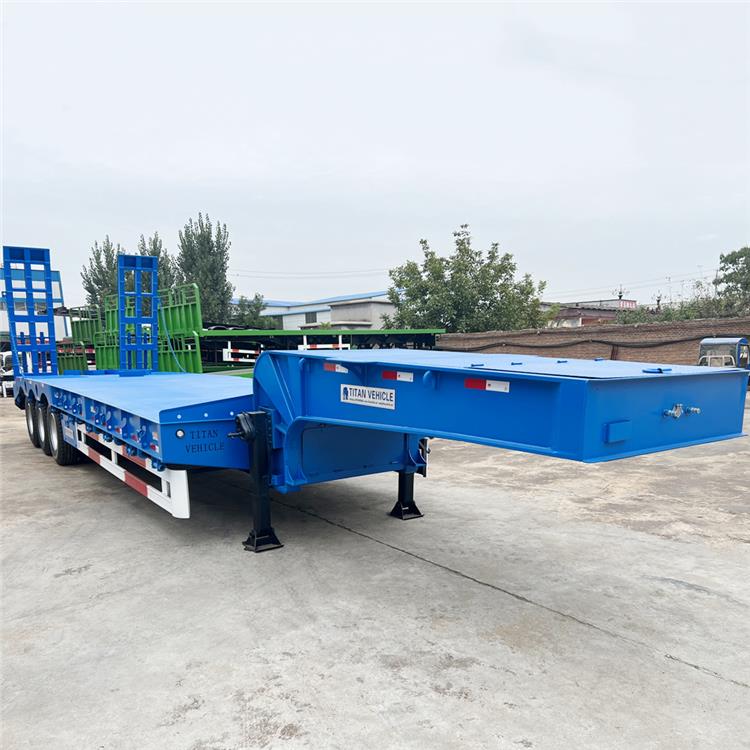

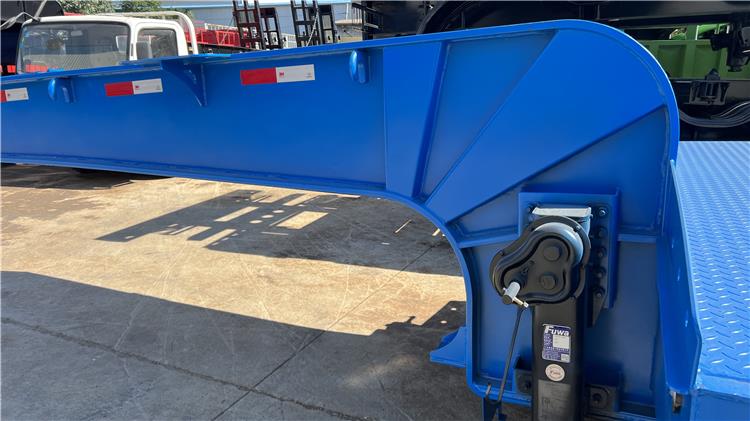

Low bed trailer 80 tons gooseneck parts adopts triple reinforcement,and it is reinforced by double boxes,which makes the lowbed trailer has more loading capacity.
TITAN low bed trailer uses the Q460C high strengthen steel to produce the trailer. The yield strength of Q460C steel is ≥620Mpa, more durable and stronger than ordinary steel, and its loading capacity is 5 times more than the trailer which adopt Q345 steel.
Titan uses T700 high strength steel to produce the side beam and adopts H-type design,it will not be deformed after ten years of use, and the anti-bump ability is increased by 3 times.

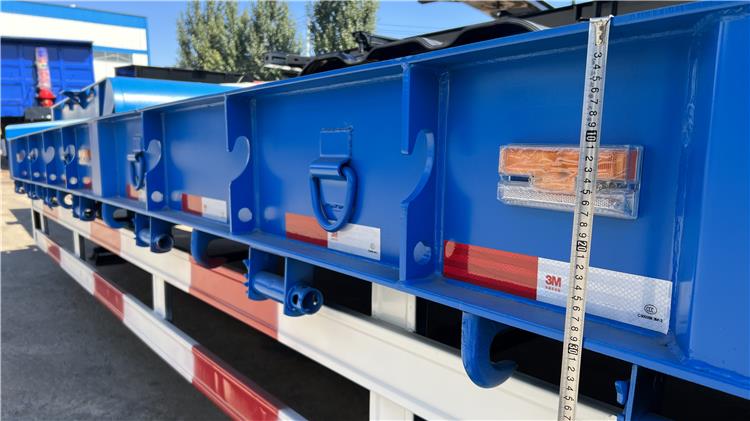

Low bed trailer 80 tons has installed hooks and rope tensioners on the trailer free of charge. With these accessories, customers can fasten the machinery to the trailer with ropes and chains, which greatly improves the safety during transportation.

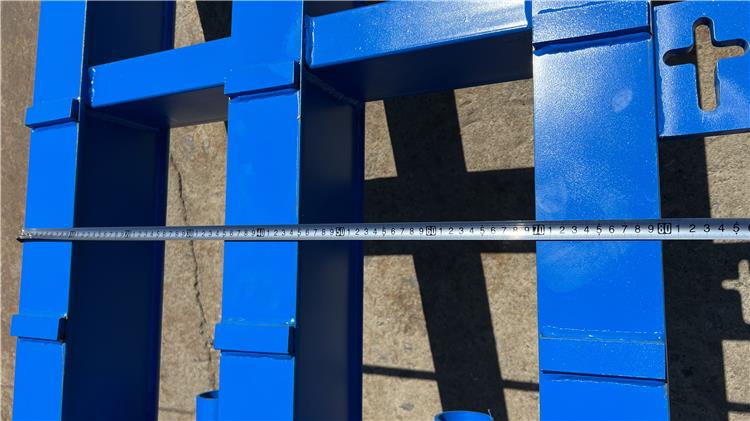

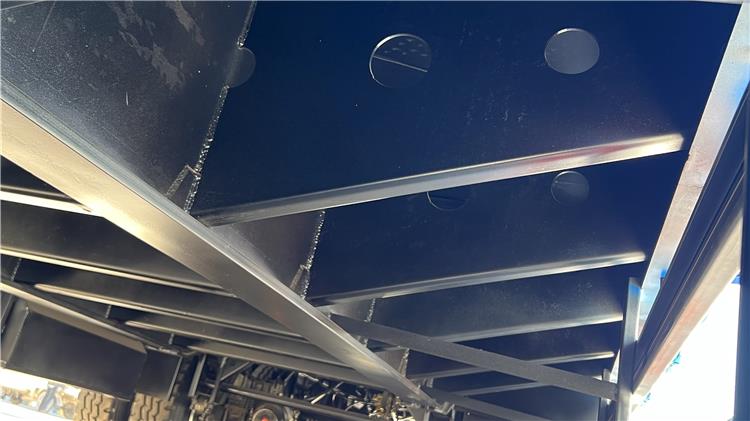

The diagonal support of our low bed trailer 80 tons is welded with 3 high-strength steel plates, which is more sturdy.And the distance between each two inclined supports is only 50 cm.
Low bed trailer 80 tons also adopts diamond anti-skid platform and its thickness is 5 mm,even you carry heavy machines,the platform will never deform.
Low Bed Trailer 80 Tons for Sale Transport to Excavator
Overall dimension: 13000mm * 3000mm *3400mm
Loading capacity(T): 60 tons

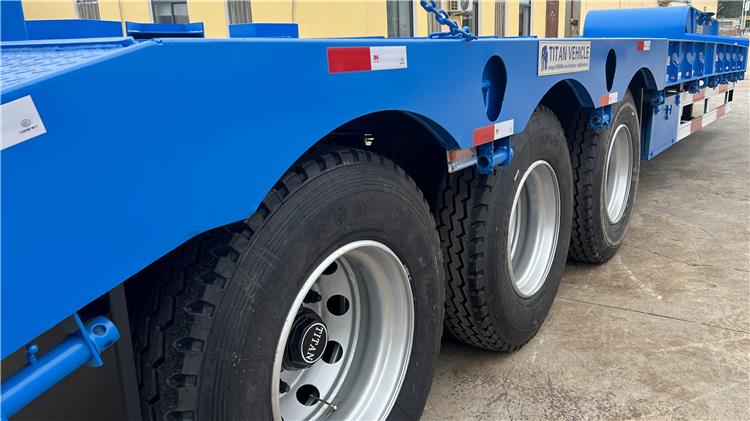

Axle: 3 axle low bed trailer, 13T/16T, FUWA / BPW / TITAN Brand

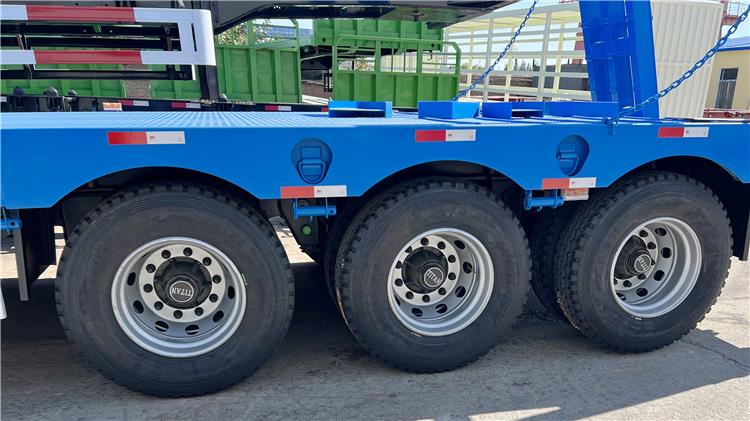

Tire: 12units, 11.00R20
Suspension: Mechanical suspension
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
Main beam: Height: 500mm, Upper plate: 20mm, Middle plate: 12mm, Lower plate: 20mm, Material: Q345B steel.
Bottom Platform: 5mm thick checkered plate

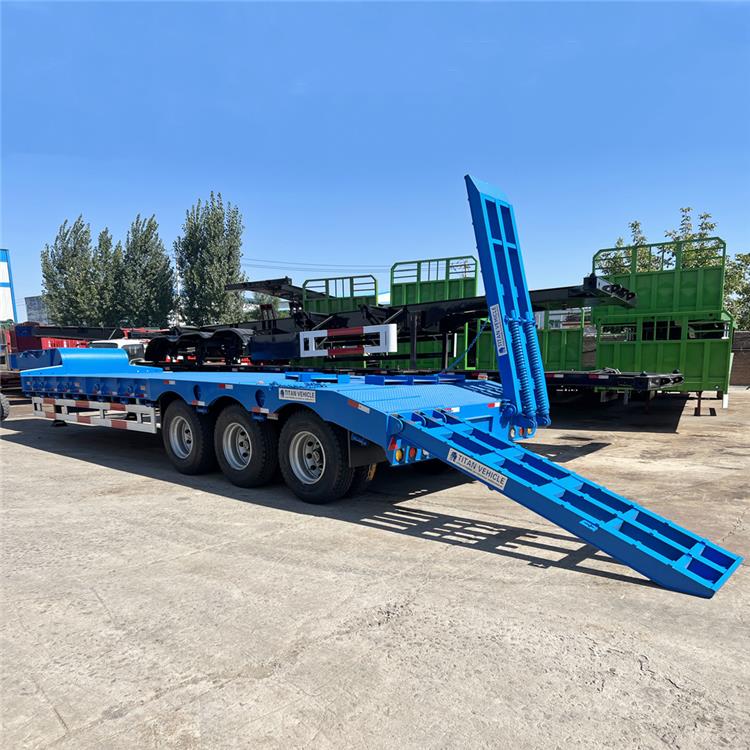

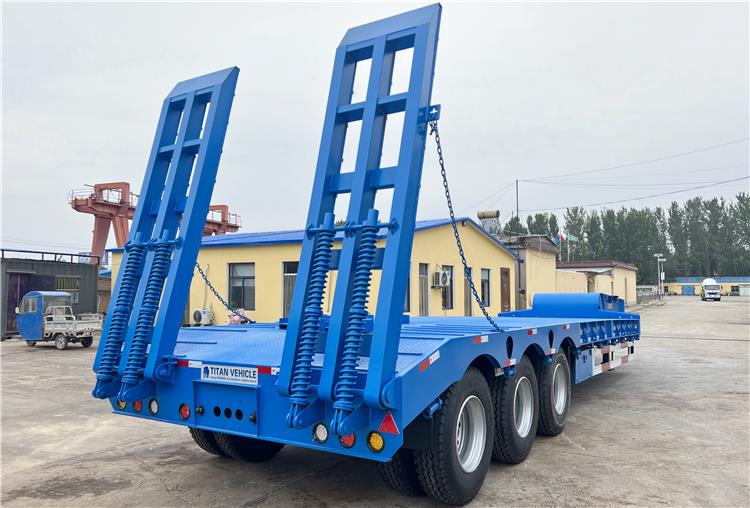

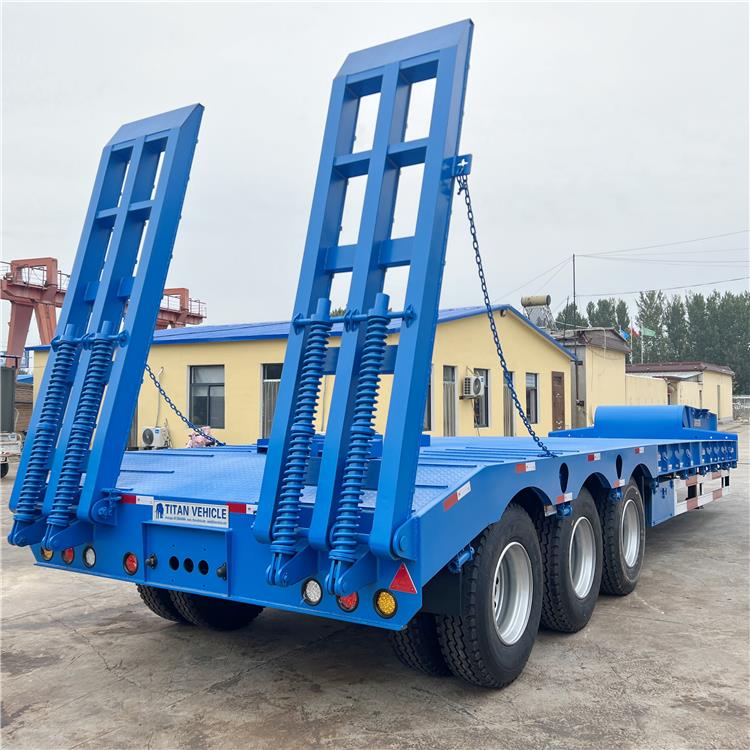

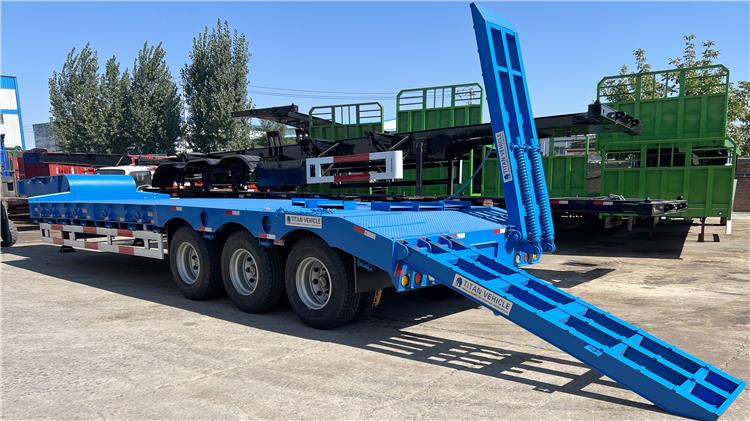

Ramp: Spring ramp
Gooseneck: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
