The main beam of low bed trailer for sale in Saudi Arabia is made of HG60 high-strength structural steel. The yield strength of HG60 steel is ≥620Mpa, which is more durable and stronger than ordinary steel. The load-bearing capacity of low bed trailer for sale in Saudi Arabia is 5 times that of trailers made of Q345 steel.
Low bed trailer for sale in Saudi Arabia can be load tested before delivery, using 80-ton steel coils for load testing. There is no deformation at all.

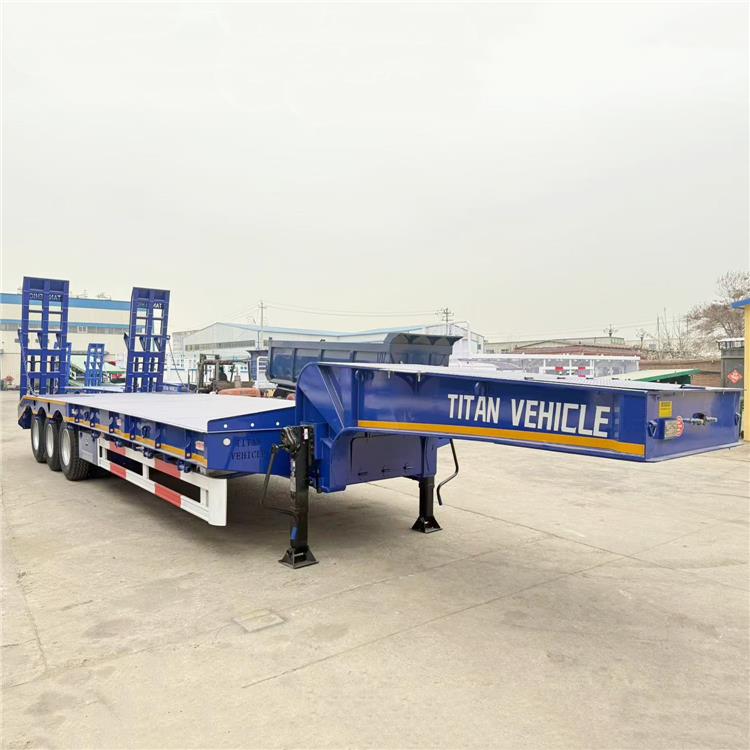

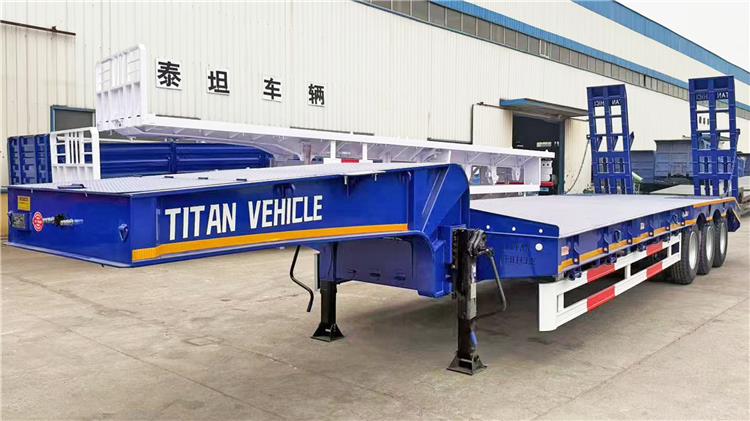

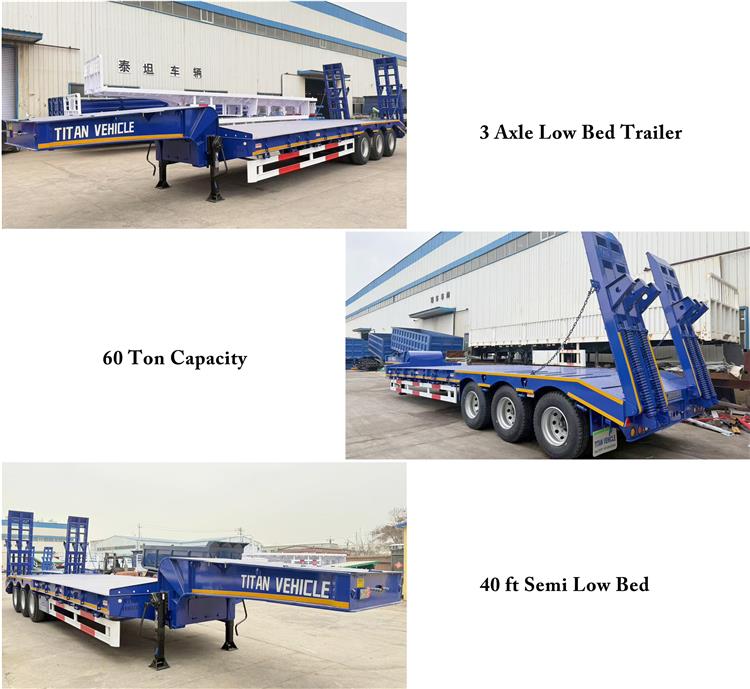

3 Axle 60 Ton Low Bed Trailer for Sale In Saudi Arabia
3 Axle 60 Ton Low Bed Trailer for Sale In Saudi Arabia
Overall dimension: 13000mm * 3000mm *3400mm
Loading capacity(T): 60 tons
Axle: 3 axle low bed trailer, 13TTITAN Brand
Tire: 12 units, 12R22.5
Suspension: Mechanical suspension
Spring leaf: 10 layers
Kingpin: JOST brand
Landing gear: JOST brand
Bottom Platform: 5mm thick checkered plate
Ramp: Spring ramp
Valve: WABCO valve
Light: LED light

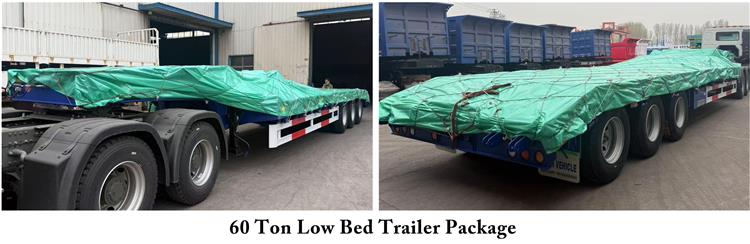

Low bed trailer for sale in Saudi Arabiacan can be transported in bulk, TITAN will spray a layer of wax on the low bed trailer and then wrap it with a tarp to ensure that it will not be corroded by sea water and rain.

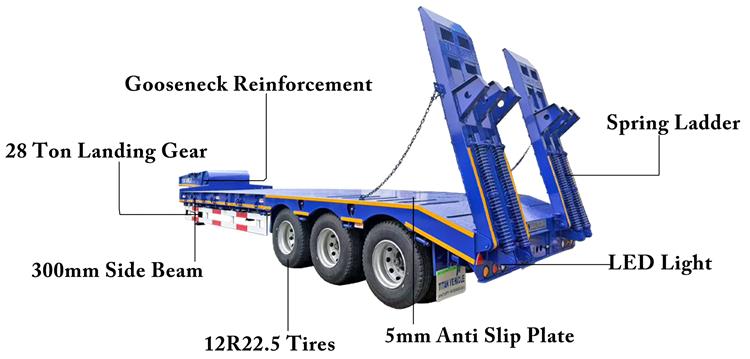

The gooseneck of the main beam of low bed trailer for sale in Saudi Arabia is very important and easy to be damaged. It has been reinforced in many aspects. The lower wing plate has been strengthened. The gooseneck part adopts a double-plate structure. It is also reinforced with buckles and buckles. The deformation range of the trailer is small when overloaded, which is better for use.
The gooseneck of low bed trailer for sale in Saudi Arabia adopts a downward-pressed gooseneck to prevent the head from tilting under heavy load. It is conducive to the front of the vehicle climbing. The side beam of low bed trailer for sale in Saudi Arabia adopts an "H" shape design and is welded with T700 steel. It will not deform when used and is resistant to bumps.

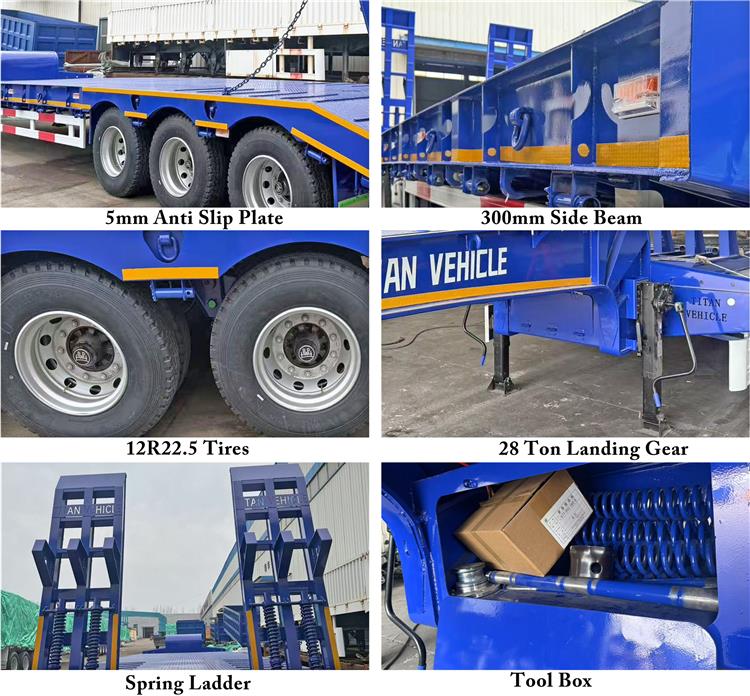

The ladder of low bed trailer for sale in Saudi Arabia is welded with high-strength steel plate HG60 steel material, which has a strong bearing capacity and effectively ensures that the weight of the excavator or other heavy equipment can pass through the spring ramp without deformation or damage. The low bed trailer for sale in Saudi Arabia uses high-quality springs, and a single person can control the rise and fall of the ladder.
The low bed trailer for sale in Saudi Arabia uses powder spray paint technology, which has strong adhesion and color rendering, and the color is more beautiful.
The low bed trailer for sale in Saudi Arabia uses a 5 mm diamond plate bottom plate. It is very strong and durable, and will not deform after long-term use.
