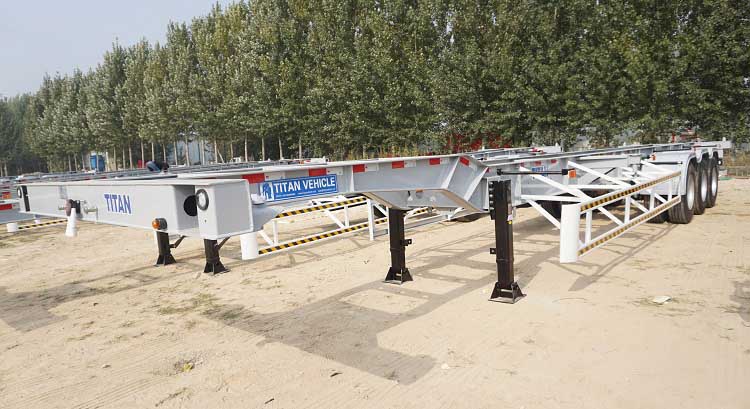

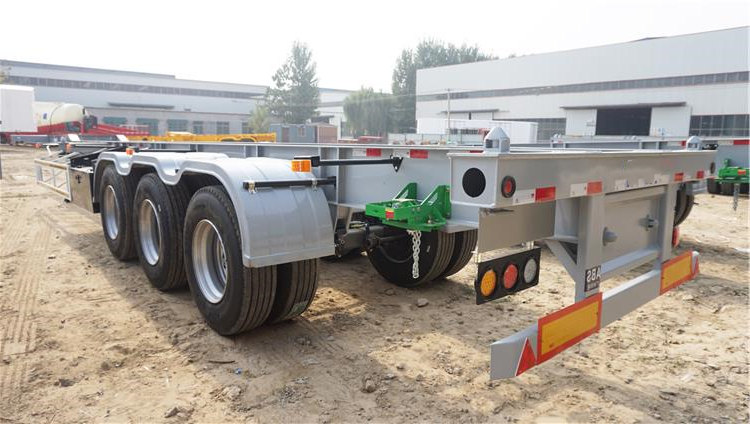

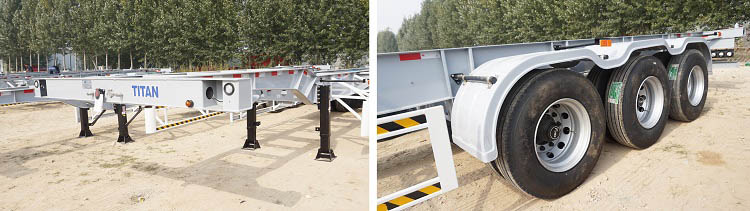

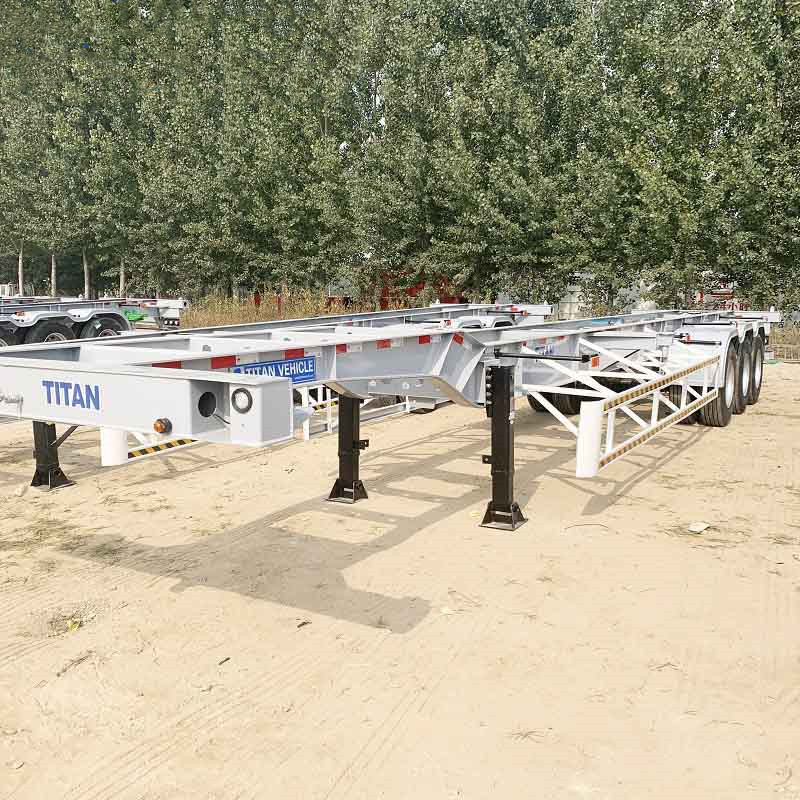

Tri axle skeleton semi trailer is a trailer whose axle is placed behind the center of gravity of the vehicle (when the vehicle is evenly loaded) and is equipped with a coupling device that can transmit horizontal and vertical forces to the tractor. Specially used for the transportation of various containers. It can be used repeatedly for a long time and has sufficient strength.
Using containers to transfer goods can be directly loaded in the consignor’s warehouse and transported to the consignee’s warehouse for unloading. There is no need to take the goods out of the container for reloading when changing vehicles or ships in the middle.
Tri Axle Skeleton Semi Trailer for Sale Price, Specifications, Drawing
Tri Axle Skeleton Semi Trailer for Sale Price, Specifications, Drawing
Tri Axle Skeleton Semi Trailer for Sale Price, Specifications, Drawing
Dimension(mm): 12400x2500x1500mm
Loading capacity(ton): ≤60T
Axles: 3 axles, 13T/16T ,FUWA/ BPW/ TITAN Brand
Tire: 12 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5
Suspension: Mechanical suspension or Air suspension
Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)
Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel
Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank
Twist Locks: 4,8,12 sets (lifting or screw type)
Valve: WABCO valve (especially intended for oversea market)
ABS: Optional
Light: LED light (especially intended for oversea market)
Voltage: 24V
Socket(Receptacle): 7-pin Socket (for 7 wire harness)
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats
Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)
Shipping Terms: Transported by the bulk carrier in an RORO or 40ft container
Through these videos, you can learn about different types of container chassis trailers, as well as the process, testing, packaging and customer feedback, etc.
Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
