20ft Container chassis trailer framework is usually made of steel. This is where the containers get loaded and offloaded through the use of overhead cranes. 20 feet container chassis trailer can be used for the transportation of containers of various lengths: 20ft

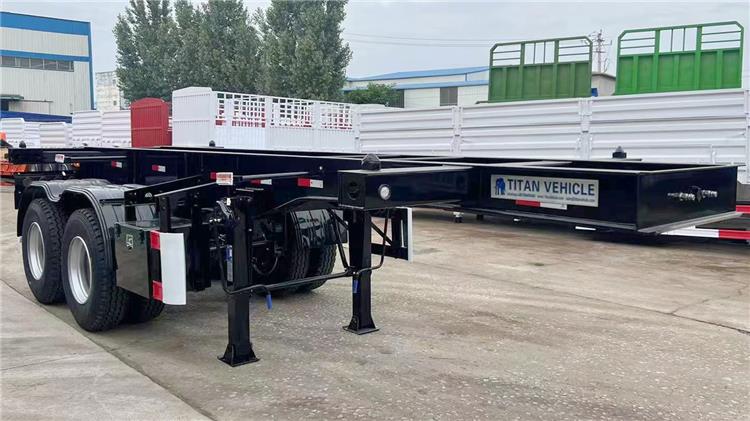

2 Axle 20ft Container Chassis Trailer for Sale In Dominica
TITAN 20ft container chassis trailer is made of Q345 high-strength steel, which has more loading capacity. The service life will be more than 10 years. The middle plate is 500 mm high,8 mm thick; upper plate is 14 mm thick,140 mm wide; bottom is 16 mm thick,140 mm wide.
TITAN 20 ft reinforces the main beam.As for the gooseneck parts of the main beam,the middle plate has been reinforced by double plate,which makes the main has small deformation even if loading heavy things.
The 20ft container chassis trailer bottom plate of the gooseneck part also be reinforced by double plate.
TITAN container chassis trailer lading gear adopts triangle reinforcement,which can effectively prevent the landing gear left and right tilt of outrigger and prolong its service life.20ft container chassis trailer suspension adopts triple reinforcement,the diameter of kin pin is 70 mm, which makes the suspension much stronger.
Dimension(mm): 12400x2500x1500mm
Loading capacity(ton): ≤60T
Axles: 2 axles, 13T/16T ,FUWA/ BPW/ TITAN Brand
Tire: 8 units, 12.00R22.5
Rim: 9.00-22.5 or 9.75-22.5
Suspension: Mechanical suspension or Air suspension
