40 Foot Sidelifter Trailer
40 Foot Sidelifter Trailer

40 Foot Sidelifter Trailer

67500 USD

The 40foot sidelifter trailer can transport 20/40ft container. Its technology can effectively solve the problem of no loading and unloading machinery.

Product description:

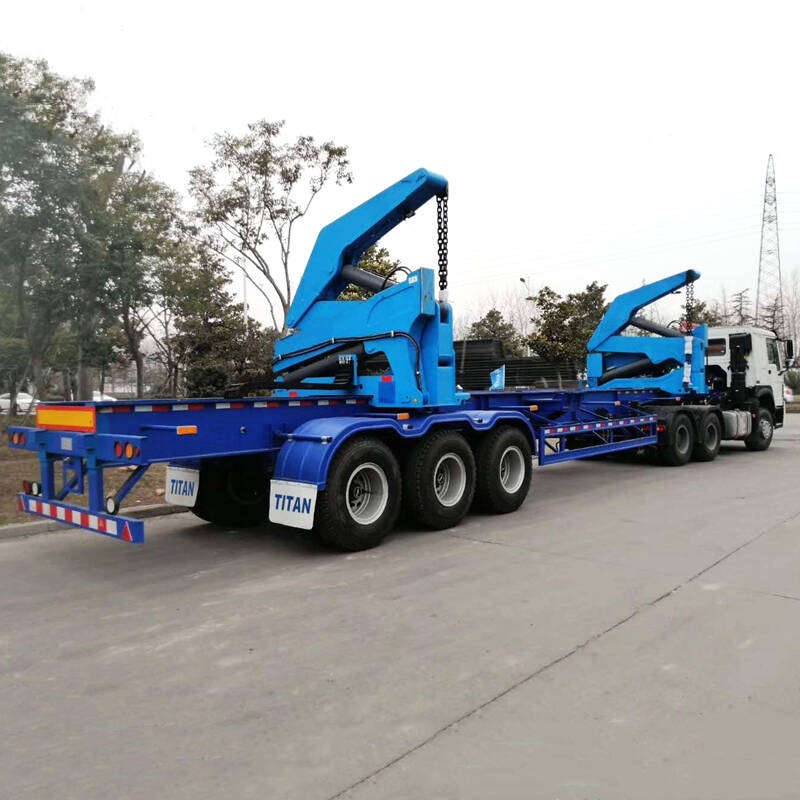

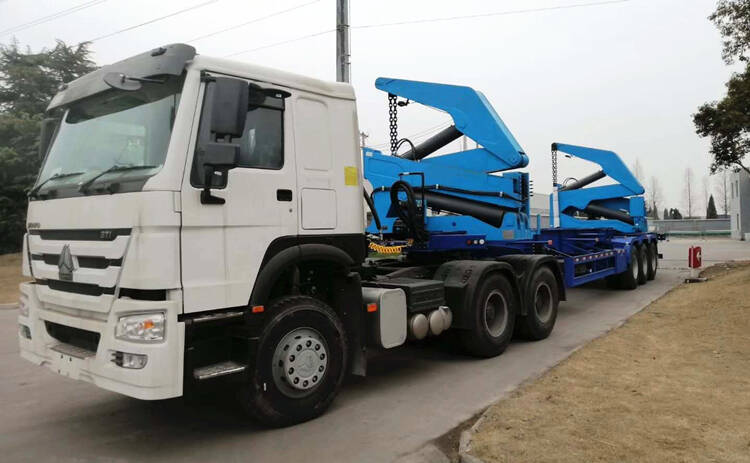

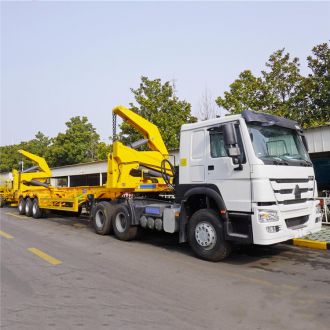

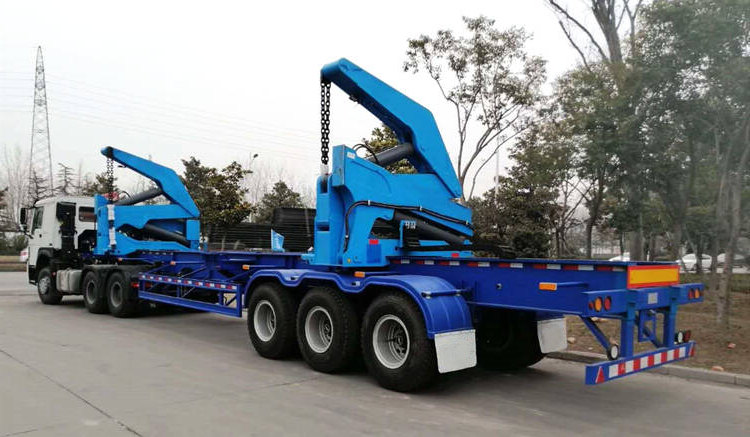

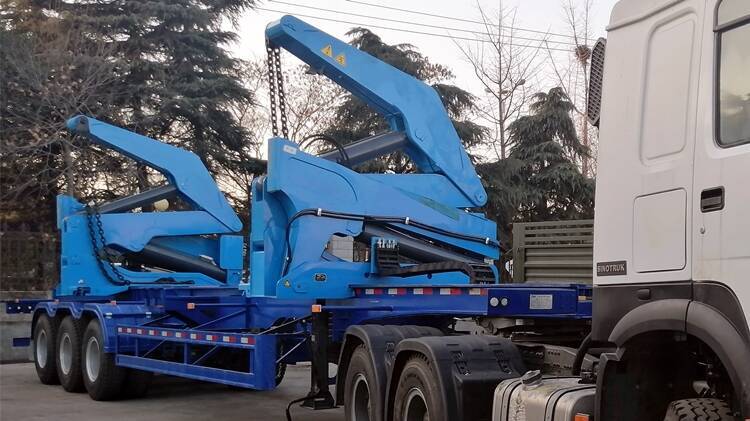

TITAN 40foot sidelifter trailerr is used for loading and unloading 40ft container or 20ft container.

TITAN 40foot sidelifter trailer have made work flexible, Save time and improve productivity for satisfied customers around the world.

We adopt World famous brand parts of the side lifter cranes.

40 Foot Sidelifter Trailer for Sale Near Me with Best Price - Hammar Sidelifter Trailer

40 Foot Sidelifter Trailer for Sale Near Me with Best Price - Hammar Sidelifter Trailer

40 Foot Sidelifter Trailer for Sale Near Me with Best Price - Hammar Sidelifter Trailer

40 Foot Sidelifter Trailer for Sale Near Me with Best Price - Hammar Sidelifter Trailer

40 Foot Sidelifter Trailer for Sale Near Me with Best Price - Hammar Sidelifter Trailer

40 Foot Sidelifter Trailer for Sale Near Me with Best Price - Hammar Sidelifter Trailer



Specification:

Max. lifting capacity: 37Ton

Max.stabilizer outreach: 3200mm

Max.working range: 4000mm

Overall height: 2500mm

Overall length: 1020mm

Max.pressure of hydraulic system: 28Mpa

Dimension(L*W*H): 14100*2500*4200mm/7500*2500*4200mm

Axle: 3axle* 13 ton (220mm brake pads)

Tire: 12/8pcs, 12R22.5

Suspension: Heavy duty type mechanical spring suspension

Kingpin: 3.5 inch bolted type

Braking system: WABCO Emergency valve

Landing gear: JOST

Tow Chain: lgus (imported)

Power source: Power take-off (equipped)

Hydraulic pump: Gear type Casappa Italy

Direction control valves: AMCA Holand

Remote Control: NBB Germany



Advantage:

• Double hydraulic safety provides safe lifting

• Lifting stops, if the support legs are not folded out

• Roll- and tip-proof with long support leg outreach

• Safe lifting; always four support points when stacking

• Tried and tested, user-friendly technology



Service:

• Detailed operating instructions also ,we have the Video Explanation

• Overseas engineer to provide technical service

• You can reach us at any time and get a rapid response

•  Competent technical service

• Rapid and safe deliveries of spare parts



Through this videos, you can learn about different types of container side loader trailers, as well as the process, testing, packaging and customer feedback, etc.
