45 Ton Side Lifter Trailer
45 Ton Side Lifter Trailer

45 Ton Side Lifter Trailer

67500 USD

TITAN 45 ton side lifter trailer include 20ft self loader truck, 20ft and 40ft container side lifter trailer. Shipping tonnage is 21 tons, 37 tons, 40 tons, 45 tons for your choice.

SKU: 45 Ton Side Lifter Trailer
MPN: TITAN9506001
Brand: TITAN

45 Ton Sidelifter Product description:

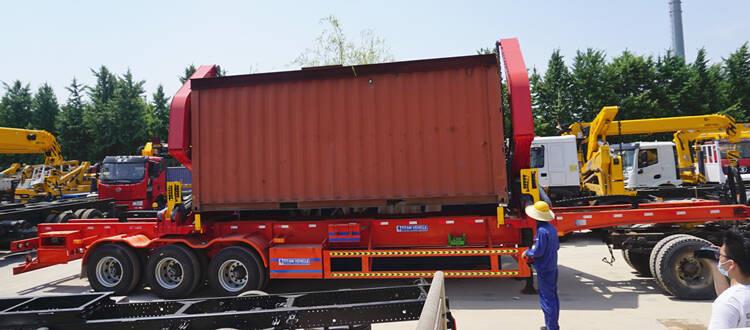

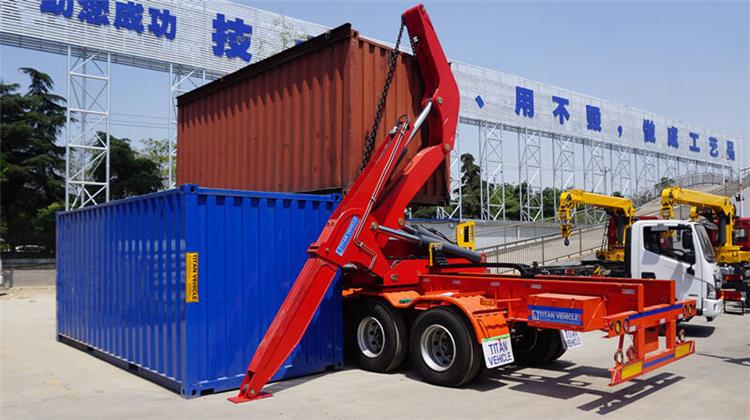

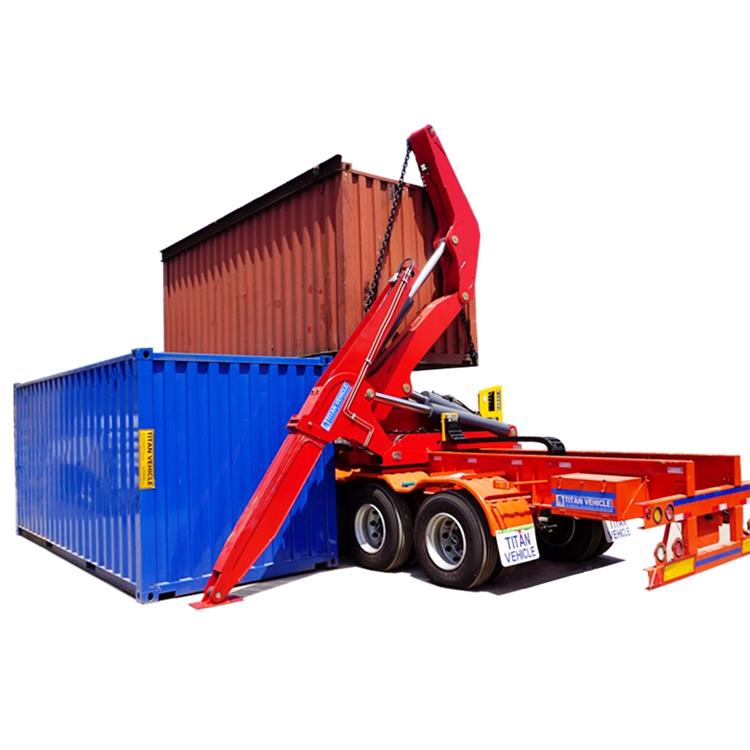

TITAN 45 ton side lifter trailer is used for loading and unloading 40ft container or 20ft container.

TITAN 45 ton side lifter trailer have made work flexible, Save time and improve productivity for satisfied customers around the world.

We adopt World famous brand parts of the side lifter cranes.

45 Ton Side Lifter Trailer for Sale In Papua New Guinea

45 Ton Side Lifter Trailer for Sale In Papua New Guinea

45 Ton Side Lifter Trailer for Sale In Papua New Guinea

45 Ton Side Lifter Trailer for Sale In Papua New Guinea

45 Ton Side Lifter Trailer for Sale In Papua New Guinea

45 Ton Side Lifter Trailer for Sale In Papua New Guinea



Specification´╝Ü

Max. lifting capacity: 45Ton

Max.stabilizer outreach: 3200mm

Max.working range: 4000mm

Overall height: 2500mm

Overall length: 1020mm

Max.pressure of hydraulic system: 28Mpa

Dimension(L*W*H): 14100*2500*4200mm/7500*2500*4200mm

Axle: 3axle* 13 ton (220mm brake pads)

Tire: 12/8pcs, 12R22.5

Suspension: Heavy duty type mechanical spring suspension

Kingpin: 3.5 inch bolted type

Braking system: WABCO Emergency valve

Landing gear: JOST

Tow Chain: lgus (imported)

Power source: Power take-off (equipped)

Hydraulic pump: Gear type Casappa Italy

Direction control valves: AMCA Holand

Remote Control: NBB Germany



Advantage´╝Ü

• Double hydraulic safety provides safe lifting

• Lifting stops, if the support legs are not folded out

• Roll- and tip-proof with long support leg outreach

• Safe lifting; always four support points when stacking

• Tried and tested, user-friendly technology



 Service:

• Detailed operating instructions also ,we have the Video Explanation

• Overseas engineer to provide technical service

• You can reach us at any time and get a rapid response

•  Competent technical service

• Rapid and safe deliveries of spare parts

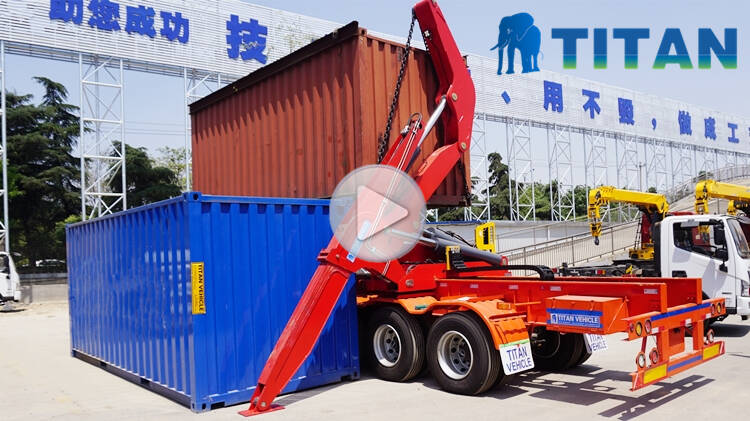

40Ft Side Lifter Trailer Video

40Ft Side Lifter Trailer



Through this videos, you can learn about different types of container side loader trailers, as well as the process, testing, packaging and customer feedback, etc.

Side lifter



Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!

Feedback

Review

Valens Muhire from Papua New Guinea - 2022-03-15T18:03:08+0800
I used a 45 ton side lifter trailer to load and unload containers, and everything was as expected. If you are new to sidelifter, if you need help, you can use the manual and set up a video.
