3 Axle Flatbed Semi Trailer
3 Axle Flatbed Semi Trailer

3 Axle Flatbed Semi Trailer

9800 USD

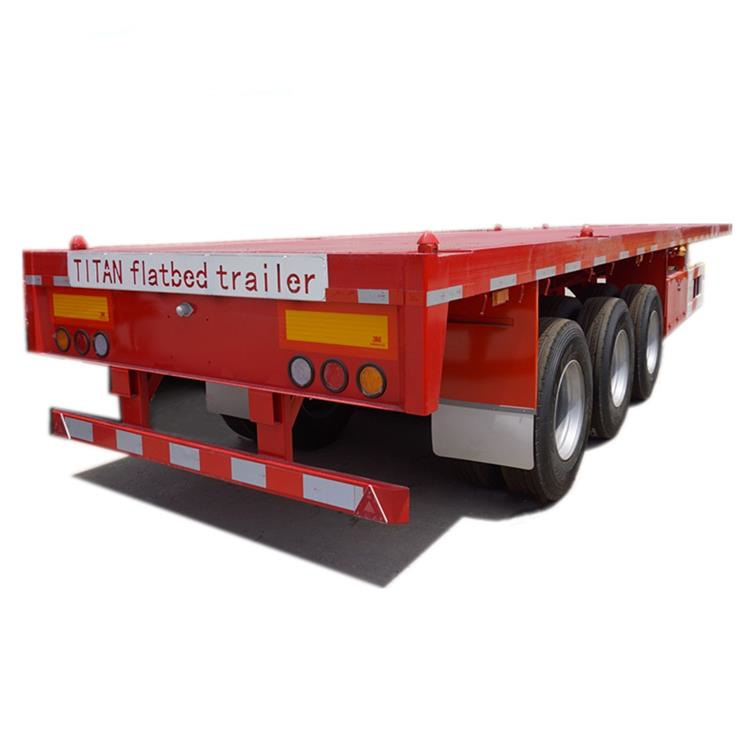

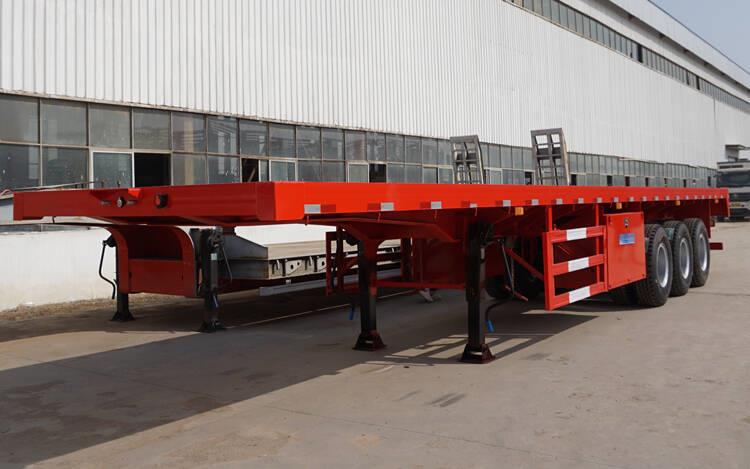

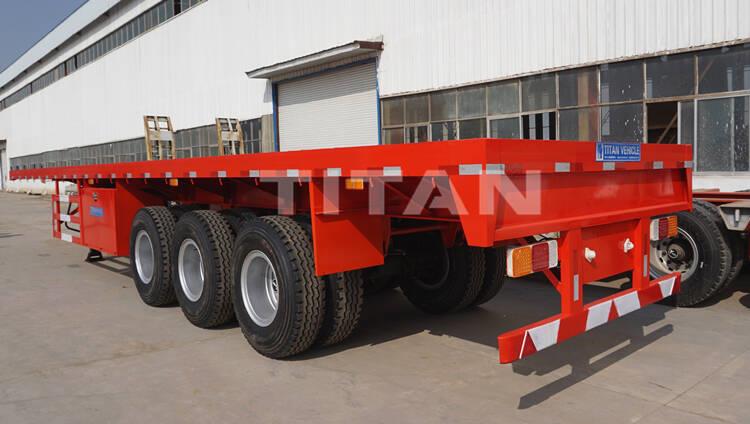

3 axle flatbed semi trailer can transport 60-80T goods and 20/40ft container. TITAN also provide another type like extendable flatbed trailer, timber trailer for transport logs and flatbed trailer with sidewall.

SKU: 3 Axle Flatbed Semi Trailer
MPN: TITAN9501004
Brand: TITAN

Product Description:

TITAN Vehicle adopts high strength steel material to manufacture the flatbed semi trailer, it can make the flatbed trailer have a higher loading capacity and a longer service life.

To make sure the service life of the 3 axle flatbed semi trailers, all the spare parts we adopt are World Famous brand.



At the same time , we also provide another type like extendable flatbed trailer, timber trailer for transport logs and flatbed trailer with sidewall.

3 Axle Flatbed Semi Trailer for Sale - TITAN Vehicle

3 Axle Flatbed Semi Trailer for Sale in Namibia - TITAN Vehicle

3 Axle Flatbed Semi Trailer for Sale - TITAN Vehicle



Specification:

Model: 3 axle flatbed semi trailer

Dimension(mm): 12500x2500x1550mm

Loading capacity(ton): ≤60T

Transport: 20ft, 40ft container

Axles: 3 axles, 13T/16T ,FUWA/ BPW/ Huajing Brand

Tire: 12 units, 12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Mechanical suspension(Germany or America type) or Air suspension(China brand or BPW brand)

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Side Beam: 16mm or 18mm steel channel (material: Q235 steel)

Platform: 3mm-thick checkered plate

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve (specially intended for oversea market)

ABS: Optional

Light: LED light (specially intended for oversea market)

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats



Advantage:

1. TITAN Vehicle uses automatic arc-submerging welding method to weld the main beam, so the main beam is more stronger and more durable.

2. Also the trailers floor is checker plate, this will keep the other bulk cargo more stable.

3. Durable mechanical widened spring suspension, make sure the stable and safety.

4. Polyurethane paint, the vehicle is more beautiful, effective protection of the body against rust, extend the life of the vehicle.

5. Hight Quality container locks, make sure the stable and safety of the loads.



Through this video, you can see different types of flatbed trailers, As well as the process, testing, packaging and customer feedback, etc.

Flatbed semi trailer



Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
