45 ton reach stacker price has balanced performance and a rated load of 45t, which meets the needs of most container operations. The engine can be equipped with Cummins National III to meet the exhaust emission requirements of various regions around the world.
45t reach stacker in Nigeria has rich configurations, reliable core components, and mature technology. It is a flagship product of XCMG Port Machinery. Replacing wind power hooks or log slings can achieve professional handling of different materials.

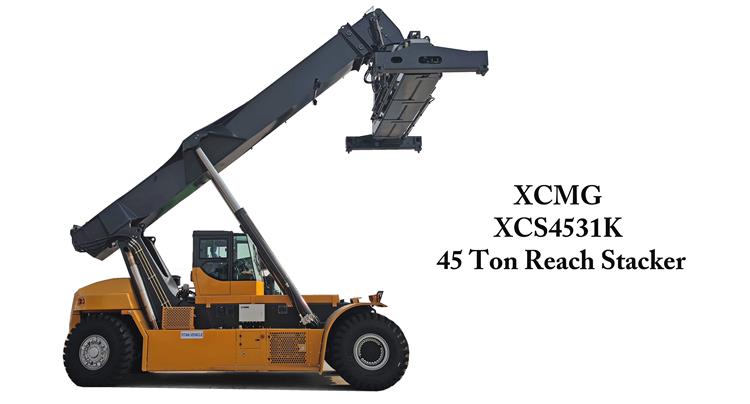

XCMG XCS4531K 45 Ton Reach Stacker Price For Sale In Nigeria
XCMG XCS4531K 45 Ton Reach Stacker Price For Sale In Nigeria
XCMG XCS4531K 45 Ton Reach Stacker Price For Sale In Nigeria
XCMG XCS4531K 45 Ton Reach Stacker Price For Sale In Nigeria
Dimension(L*W*H): 11340*6053*4670 mm
Model: XCS4531K
Loading capacity: 45 tons
Engine: Cummins QSM 11
Gearbox: Dana 15.5HR36432
Axles: Kessler D102PL341
Tire: 18.00R25 40 PR,6 units
Light: 24V
Fuel: diesel
Spreader: XCMG spreader is suitable for handling 20' and 40' standard containers. Telescoping, side shift and rotating function, as well as
twist lock control are available.
Rated lifting capacity: 45 t.
Side shift: ±800 mm.
Rotation angle: -105°～+195°.

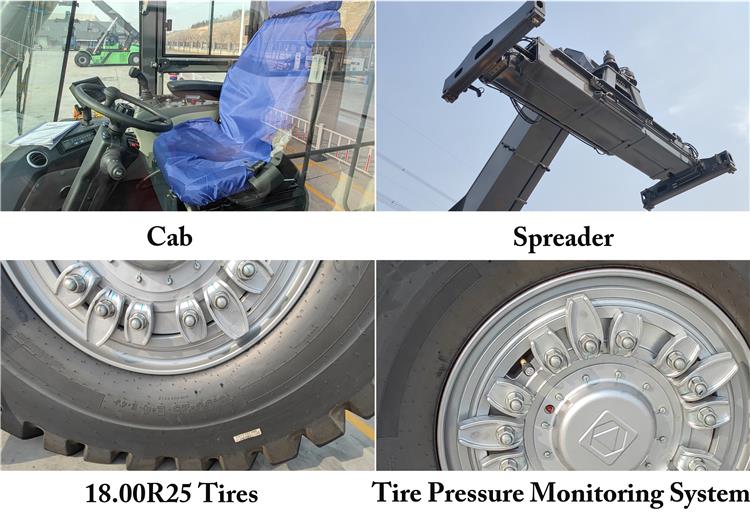

Cab: Dynamic moving full-view driver’s cab.Equipped with ergonomic seat, two-point retractable seat belt, water cup holder, 12V and 24V power supply, radio, loudspeaker amplifiers and HD Reverse view system.
Air Condition: High-power, fully automatic heating and
cooling air condition.
Engine: QSM 11, in line, six-cylinder, water-cooled, turbocharged, electric control diesel engine, manufactured by Cummins;
Rated power 250 kW/2100rpm, max. torque 1674 Nm / 1400 rpm
Emission compliance: compliant with off-road U.S. EPA Tier 3/EU Stage IIIA;
Transmission:15.5HR36432, automatic transmission (with manual shift) manufactured by American Dana, with 4 forward and 4 reverse gears available.
Drive Axle: D102PL341 heavy-duty drive axle, manufactured by German Kessler.
Tires: 6 diagonal tires, Tire specifications: 18.00-25 40PR.
Brakes: Service brake: wet disc brake, acting on the front wheels, and equipped with an independent cooling tank, high-performance filter and radiator. Parking disc brake, acting on the front axle.
Steering: Equipped with and easy to use.
Hydraulic System: America Parker variable plunger pump and valve, the system has compound action, high and low speed automatic switching(high speed when unloaded, low speed when loaded), vertical lifting and spreader anti-swing function. Equipped with high high-performance filter and a high-power independent radiator.
Electric System: 24V CAN bus control system, two batteries, negative ground.
Driving lights: three headlights, two turning signals in front of the vehicle; two turning signals, two brake lights and two reversing
lights behind the vehicle.
Working lights: two working lights at the spreader locks, four working lights at the middle of the boom, and four working lights behind the vehicle.
Warning lights: one rotating alarm lamp at the back of the vehicle.
Safety Devices: LMT, anti-tilting protection device for rear axle, 2.5m long distance astern radar, one 2kg fire extinguisher, automatic fire extinguishing
Frame: Frame is made of high-tension steel, with anti-torsion large cross-section.
Boom: Two-stage, quadrangular telescopic boom, anti-torsion design, is made of high-tension steel.
The 45t reach stacker in Nigeria has a flexible lifting arm that can realize three-row stacking, with a maximum lifting height of 15 meters. The powerful power system (usually equipped with Weichai/Cummins + ZF gearbox + Kessler drive axle) can adapt to various complex ground conditions.
xcmg xcs4531k in Nigeria's high-efficiency hydraulic system has fast response, energy saving and consumption reduction, and improves operating efficiency.
45 ton reach stacker price The structure is made of high-strength steel, and the key parts are strengthened to extend the service life.
45t reach stacker in Nigeria's intelligent safety protection system (anti-overload, video monitoring, limit alarm, etc.) ensures the safety of operators.
xcmg xcs4531k in Nigeria The cab has a panoramic view design and is equipped with heating and cooling air conditioners as standard to improve operating comfort.
