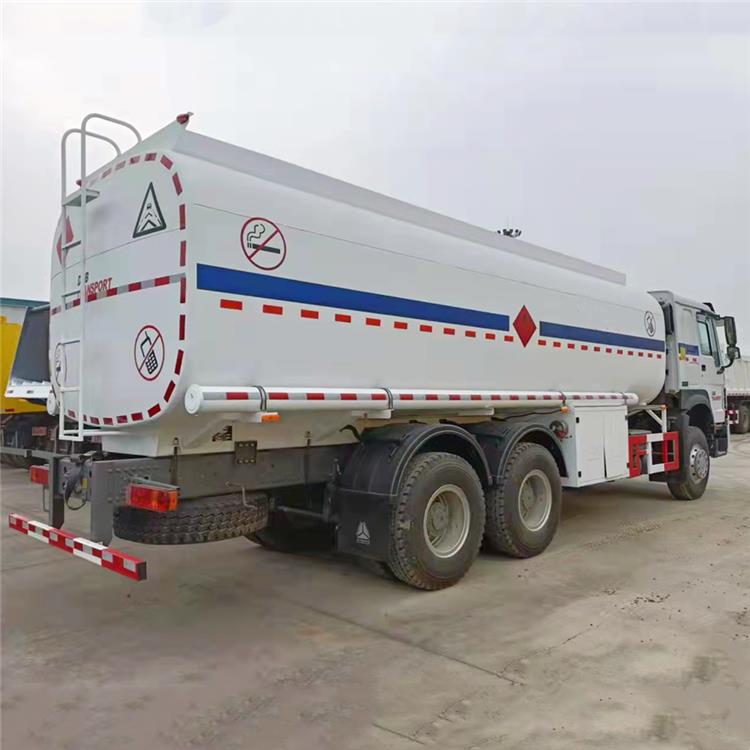

Howo 6x4 Truck Fuel Petrol Tanks
Howo 6x4 Truck Fuel Petrol Tanks

Howo 6x4 Truck Fuel Petrol Tanks

44500 USD

Fuel transport systems, depots, chemical transport companies, and gas transport companies need safe and reliable Howo 6x4 Truck Fuel Petrol Tanks to hold that material.

SKU: Howo 6x4 Truck Fuel Petrol Tanks
MPN: HOWO9404007
Brand: Sinotruk

Product Description:

Howo 6x4 Truck Fuel Petrol Tanks have a variety of fueling or oil transport functions depending on the application and environment. They have the functions of oil absorption, pump oil, and various oil dispensing and distribution.

The special part of the oil truck is composed of a tank body, a power take-off, a drive shaft, a gear oil pump, a pipe network system and the like. The pipe network system consists of an oil pump, a three-way four-position ball valve, a two-way ball valve, a strainer, and a pipe.

Fuel Tanker Truck | Howo 371 Fuel Tanker Truck Price for Sale Manufacturers

Used Tanker Trucks for Sale | Howo 6x4 Truck Fuel Petrol Tanks for Sale Near Me

Fuel Tanker Truck Howo 371 for Sale Price

Fuel Tanker Truck Howo 371 6x4 for Sale Price



Specification:

Chassis model: ZZ1257N4641W

Driving type: LHD (RHD is optional)

Cabin: HW76, with one sleeper and two seats, double arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse stabilizer, with four-point support floating suspension+shock absorber.

Engine:

Make: SINOTRUK Diesel 4-stroke direct injection diesel engine

Engine model: WD615.69, Euro 2, 336 HP 6-cylinder in-line with water cooling, turbo-charging and intercooling

Displacement: 9.726 L

Transmission: HW19710, 10F & 2R with PTO

Ratio:14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2)

Steering: ZF power steering, model ZF8118, hydraulic steering with power assistance

Front axle: HF9,1×9000 KGS, 7 Ton

Steering: with doubleT-cross section beam

Rera-axle: HC16, 2×16000 KGS, Pressed axle housing, central single reduction with hub reduction, with differential locks between wheels and axles, 13 Ton

Ratio: 4.42

Propeller shaft: Double universal joint propeller shaft with gear-shaped coupling flange

Chassis:

Frame: U-profile parallel ladder frame with a section of 300x80x8mm, reinforced subframe all cold riveted cross members

Front suspension:10 semi-elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer

Rear suspension: 12 leaf semi-elliptic springs, bogie spring and stabilizer

Brake:

Service brake: dual circuit compressed air brake

Parking brake (emergency brake): spring energy, compressed air operating on the front shaft and rear wheels

Auxiliary brake: engine exhaust brake

Electrics:

Operating voltage: 24 V, negative grounded

Starter: 24 V, 5.4 Kw

Alternator: 3-phase, 28 V, 1500 W

Batteries: 2 x 12 V, 165 Ah

Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light

Tyres: 315/80R22.5, tubeless tyres with one spare tyre

Fuel tank body: Capacity 20000l

Overall Dimension: 10350×2496×3350 mm

Wheelbase(mm): 4600 + 1350mm

Tank Material: Carbon steel (optional with stainless steel, aluminum alloy)

Equipment:

1. Equipped with 1 oil pump with 1 inlet valve and 1 outlet valve.

2. Tank divided into 6 compartments, each discharge valve for each compartment.

3. Each European standard manhole cover and each air emergency valve for each compartment.

4. Equipped with the folding barrier on top of the tank.

5. Equipped with a fire extinguisher, front ladder, grounding wire, plastic fender.



Advantage:

1. Through the collision test, driving safety guarantee: the steel frame structure, the four-level safety protection system of frame safety and protection safety, after passing the high-standard collision test and being able to leave the test normally, it can withstand the two-ton swing arm impact test After the brand was opened from the laboratory.

2. Chassis parts adopt the reliable performance of international accessory products.

3. Car interior: humanized interior layout, high-end atmosphere shows taste.

4. The whole vehicle adopts CAN bus control technology: to improve the reliability and flexibility of the system.

5. A safer cab, stronger power, stronger carrying capacity, and better cost performance than models of the same level.
