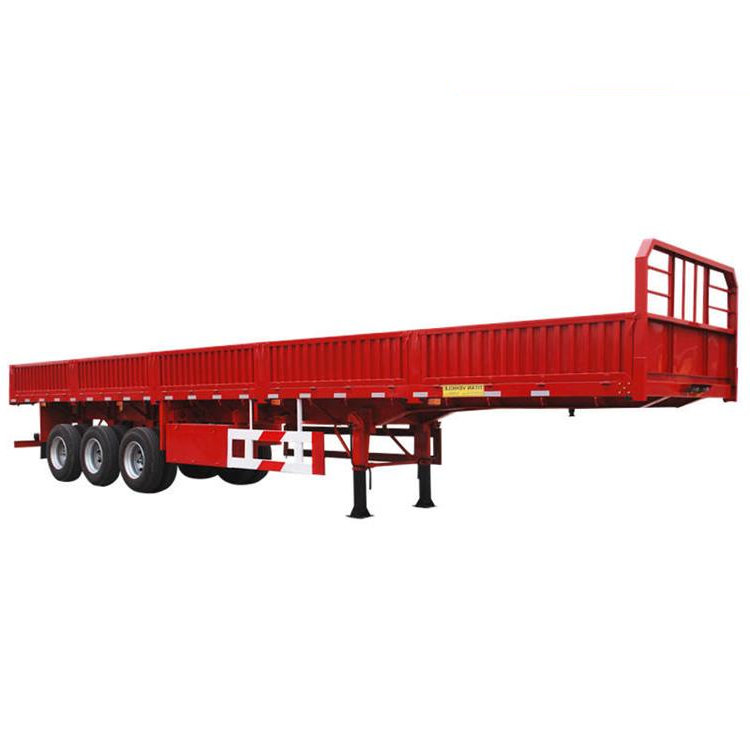

Tri Axle 40 Ton Stake Livestock Semi Trailer
Tri Axle 40 Ton Stake Livestock Semi Trailer

Tri Axle 40 Ton Stake Livestock Semi Trailer

10000 USD

Tri axle 40 ton stake livestock semi trailer has a 1000mm high side wall structure design. It can carry 60 tons of bulk cargo.

SKU: Tri Axle 40 Ton Stake Livestock Semi Trailer
MPN: TITAN9503004
Brand: TITAN

Product Description:

Tri axle 40 ton stake livestock semi trailer was popular by logistics companies as its multipurpose application.It use to load a wide range of products and materials, like sand, bags, poultry etc. Also the some bulk cargo, very widely used in the transportation industry.

The Tri axle 40 ton stake livestock semi trailer can be use to load the containers after adopt the contianer locks for it.

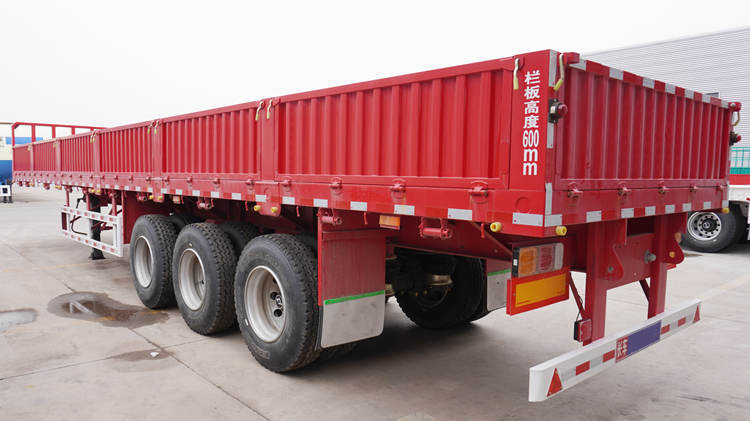

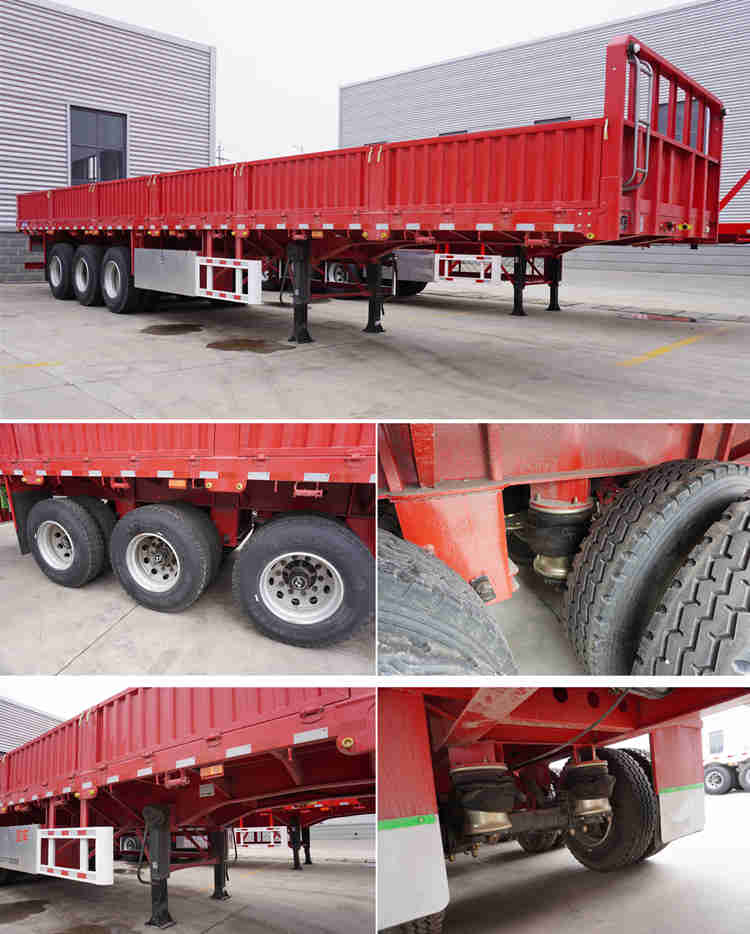

Tri Axle 40 Ton Stake Livestock Semi Trailer for Sale In Ghana - TITAN VEHICLE

Tri Axle 40 Ton Stake Livestock Semi Trailer for Sale In Ghana - TITAN VEHICLE

Tri Axle 40 Ton Stake Livestock Semi Trailer for Sale In Ghana - TITAN VEHICLE

Tri Axle 40 Ton Stake Livestock Semi Trailer for Sale In Ghana - TITAN VEHICLE



Specification:

Dimension(mm): 12500x2500x2350mm

Trailer Sides: 800mm sidewall

Loading capacity(ton): ≤50T

Axles: 3 axles, 13T/16T ,FUWA/ BPW/ Huajing Brand

Tire: 12 units, 12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Mechanical, Bogie, Airbag suspension(China brand or BPW brand)

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Bottom Side Beam: 16mm or 18mm steel channel (material: Q235 steel)

Platform: 3mm-thick checkered plate

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve (specially intended for oversea market)

ABS: Optional

Light: LED light (specially intended for oversea market)

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats



Advantage:

1. TITAN Vehicle adopts high strength steel material to manufacture the sidewall cargo trailer, it can make the trailer have a higher loading capacity and a longer service life.

2. To make sure the service life of the semi trailers, all the spare parts we adopt are World Famous brand.

3. Trailers floor is checker plate, this will keep the other bulk cargo more stable, like the bags, or long stuff.

4. Hight Quality side wall, make sure the stable and safety of the loads.



Through this videos, you can learn about different types of container side loader trailers, as well as the process, testing, packaging and customer feedback, etc.

Tri Axle Grain Transport Trailer



We will provide quotation and more details, drawings, pictures, videos for you!
