336 hp Tipper Truck for Sale
336 hp Tipper Truck for Sale

336 hp Tipper Truck for Sale

41000 USD

Howo 336 hp 10 wheel tipper truck has won the hearts of so many African customers due to its power, stability, and low cost of maintenance.

SKU: 336 hp Tipper Truck for Sale
MPN: HOWO9602024
Brand: SINOTRUK

Description:

Howo 336 hp 10 wheel tipper truck has won the hearts of so many African customers due to its power, stability, and low cost of maintenance.

Sinotruk howo 336 tipper truck is suitable for in harsh environments, unloading and transport ore and others. According to clients' requirements, we can customize different  loading capacity and volume. We garrantee that everytruck is from sinotruk original factory with high quality and good after sale service.

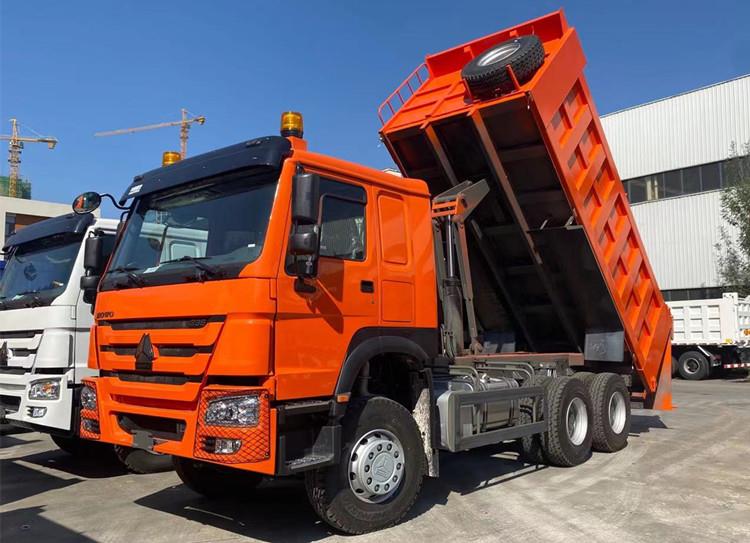

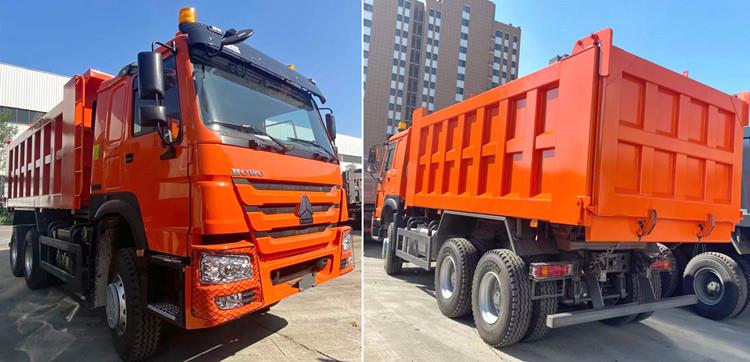

Sinotruk Howo 336 hp 10 Wheel Tipper Truck for Sale in Ghana

Sinotruk Howo 336 hp 10 Wheel Tipper Truck for Sale in Ghana

Sinotruk Howo 336 hp 10 Wheel Tipper Truck for Sale in Ghana

Sinotruk Howo 336 hp 10 Wheel Tipper Truck for Sale in Ghana

Sinotruk Howo 336 hp 10 Wheel Tipper Truck for Sale in Ghana

Details of the Cabin of the Sinotruk Howo 336 hp 10 Wheel Tipper Truck

Sinotruk Howo 336 hp 10 Wheel Tipper Truck for Sale in Ghana



Specification:

MODEL: ZZ3257N3847A

ENGINE:

Engine model: WD615.47, Euro II emission standard, 4 stroke injection diesel engine, 6 cylinder in-line with water

cooling, turbo-charging & inter cooling, mechanical high pressure oil pump system

Maximum output: 371PS (273kW) at 2000 rpm

Maximum torque: 1560Nm at 1200-1500rpm

Bore: 126mm

Stroke: 130mm

Displacement: 9.726L

CLUTCH: SINOTRUK’s 430C diaphragm spring clutch, hydraulically operating with air assistance

TRANSMISSION: Transmission, model HW19710, 10 forward and 2 reverse  Ratio: 5.73

FRONT AXLE: New HF9 series, with drum brake system

REAR AXLE: HC16 pressed axle housing, single reduction and differential locks between axles; with drum brake system.

STEERING: ZF8118, hydraulic steering with power assistance  Ratio: 22.2-26.2:1

WHEELS&TYRES:

Rims: 8.5-20,10 hole-steel

Types: 13R22.5

CARGO BODY: 5600*2300*1500, bottom 8mm, side 6mm, Middle lift system (Other sizes are optional)

DRIVER CAB:

Long cab, all steel forward control, 55°hydraulic tilting to the front, 2-arm windscreen wiper system with 3 speeds, adjustable co-driver’s seat, heating & ventilation system, with stereo radio/cassette recorder, sun visor, safety belt, air conditioner, 2 warming light

DIMENSIONS(in mm):

Wheel base (mm): 3800+1350

Front wheel track (mm): 2022/2041

Rear wheel track (mm):1830/1830

Overhang(front/rear) (mm):1500/2295

Approach angle(°):19

Departure angle(°):20

Overall Dimension (mm):9745x2496x3550

WEIGHT(in kg):

Permissible loading capacity (kg):13000

Dead weight (kg):12500

Gross vehicle weight (kg):25000

Front axle loading capacity (kg):9000

Rear axle loading capacity (kg):2*16000

PERFORMANCE:

Maximum driving speed(km/h):75(reference data)

Maximum gradeability (%):36

Minimum ground clearance(mm):314

Minimum turning radius (m):15

Fuel consumption(L/100km):40(reference data)



About SINOTRUK:

TITAN is authorised distributor of SINOTRUK, We produce New SINOTRUK Howo Trucks according to your order.



SINOTRUK is China's first heavy duty truck manufacturer, initially founded in 1956 and the cradle of China's heavy duty truck industry. SINOTRUK once manufactured China's first heavy duty truck, and it is China's first company to comprehensively introduce foreign heavy duty truck manufacturing technology of complete vehicle.

Today, SINOTRUK has developed into China's largest heavy duty truck manufacturing base and made significant contributions to the development of China's heavy duty truck industry and national economic growth.



SINOTRUK has been adhering to implementing independent innovations, carrying out its leading strategy in technologies and building its core competitiveness with intellectual property rights. It has the most patents in China's automotive industry.

SINOTRUK’s main truck models include HOWO, HOWO A7, HOHAN, main truck types include truck tractor, tipper truck, cargo truck, truck chassis, fuel tanker truck, water tank truck, and other special trucks.
