SINOTRUCK HOHAN 8x4 dump truck own the elegant appearance, strong operation system and excellent safety. Hohan 30 ton dump truck has won the hearts of so many African customers due to its power, stability, and low cost of maintenance.
You can choose howo n7 dump truck cargo body with front lifting type or middle lifting type which you prefered. The hydraulic sytem using HYVA brand or Domestic famouse brand. The optimized hydraulic control system helps to avoid wrong operation, it has higher safety and running efficiency.

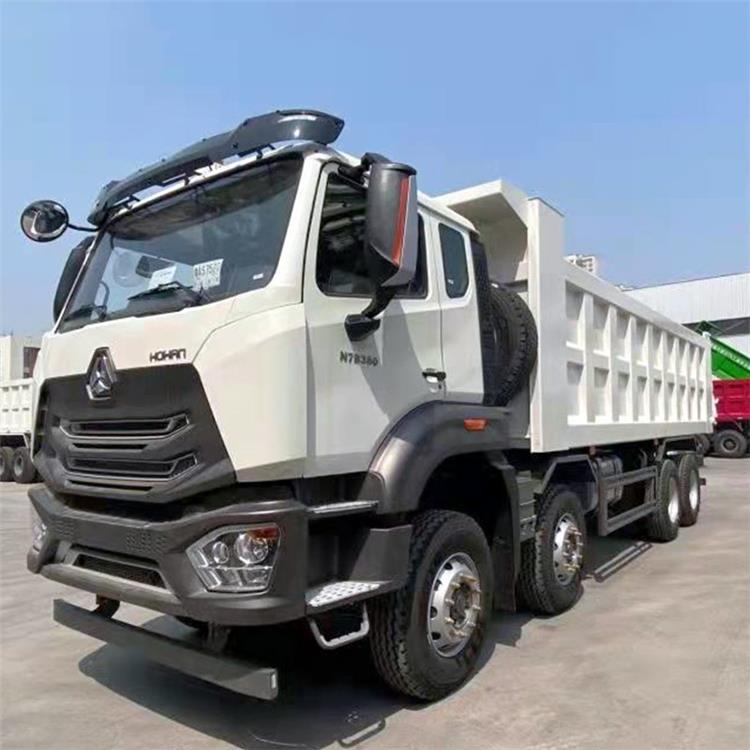

Sinotruck HOHAN 30 Ton Dump Truck | Howo N7 8x4 Dump Truck for Sale
Sinotruck HOHAN 30 Ton Dump Truck | Howo N7 8x4 Dump Truck for Sale
MODEL: ZZ3317N3566B
ENGINE:
Engine model: WD615.47, Euro II emission standard, 4 stroke injection diesel engine, 6 cylinder in-line with water
cooling, turbo-charging & inter cooling, mechanical high pressure oil pump system
Maximum output: 371PS (273kW) at 2000 rpm
Maximum torque: 1560Nm at 1200-1500rpm
Bore: 126mm
Stroke: 130mm
Displacement: 9.726L
CLUTCH: SINOTRUK’s 430C diaphragm spring clutch, hydraulically operating with air assistance
TRANSMISSION: Transmission, model HW19710, 10 forward and 2 reverse Ratio: 5.73
FRONT AXLE: New HF9 series, with drum brake system
REAR AXLE: HC16 pressed axle housing, single reduction and differential locks between axles; with drum brake system.
STEERING: ZF8118, hydraulic steering with power assistance Ratio: 22.2-26.2:1
WHEELS&TYRES:
Rims: 8.5-20,10 hole-steel
Types: 12.00R20
CARGO BODY: 7300*2300*1500, bottom 8mm, side 6mm, Middle lift system
DRIVER CAB:
H77L, long cab, all steel forward control, 55°hydraulic tilting to the front, 2-arm windscreen wiper system with 3 speeds, adjustable co-driver’s seat, heating & ventilation system, with stereo radio/cassette recorder, sun visor, safety belt, air conditioner
DIMENSIONS(in mm):
Wheel base (mm): 1800+3500+1350
Front wheel track (mm): 2022/2041
Rear wheel track (mm):1830/1830
Overhang(front/rear) (mm):1500/2295
Approach angle(°):19
Departure angle(°):20
Overall Dimension (mm):11745x2496x3550
WEIGHT(in kg):
Permissible loading capacity (kg):16000
Dead weight (kg):15000
Gross vehicle weight (kg):31000
Front axle loading capacity (kg):2*9000
Rear axle loading capacity (kg):2*16000
PERFORMANCE:
Maximum driving speed(km/h):75(reference data)
Maximum gradeability (%):36
Minimum ground clearance(mm):314
Minimum turning radius (m):15
Fuel consumption(L/100km):40(reference data)
TITAN is authorised distributor of SINOTRUK, We produce New SINOTRUK Howo Trucks according to your order.
SINOTRUK is China's first heavy duty truck manufacturer, initially founded in 1956 and the cradle of China's heavy duty truck industry. SINOTRUK once manufactured China's first heavy duty truck, and it is China's first company to comprehensively introduce foreign heavy duty truck manufacturing technology of complete vehicle.
Today, SINOTRUK has developed into China's largest heavy duty truck manufacturing base and made significant contributions to the development of China's heavy duty truck industry and national economic growth.
SINOTRUK has been adhering to implementing independent innovations, carrying out its leading strategy in technologies and building its core competitiveness with intellectual property rights. It has the most patents in China's automotive industry.
SINOTRUK’s main truck models include HOWO, HOWO A7, HOHAN, main truck types include truck tractor, tipper truck, cargo truck, truck chassis, fuel tanker truck, water tank truck, and other special trucks.
