The self propelled modular vehicle adopts a highly modular structure, and can freely combine the number of axes and structural layout (2 axes, 4 axes, 6 axes or even more) according to different transportation needs.
The self propelled modular trailer In Vietnam is highly adaptable and can be connected to the pull-out platform, gooseneck device, hydraulic power module, self-propelled module (SPMT), etc., to achieve the transportation of light equipment to thousand-ton engineering components.

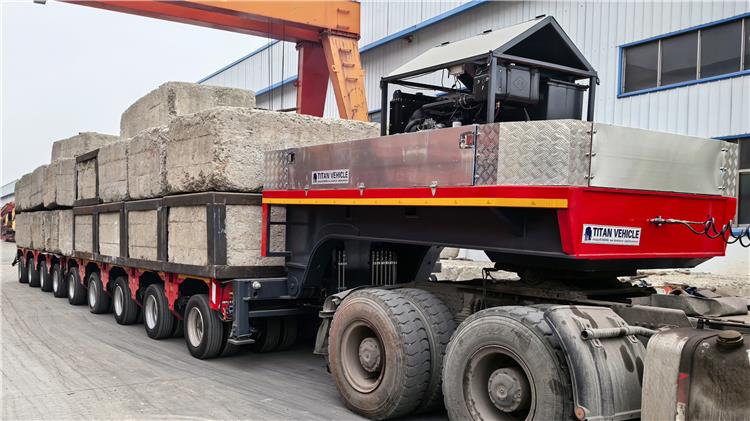

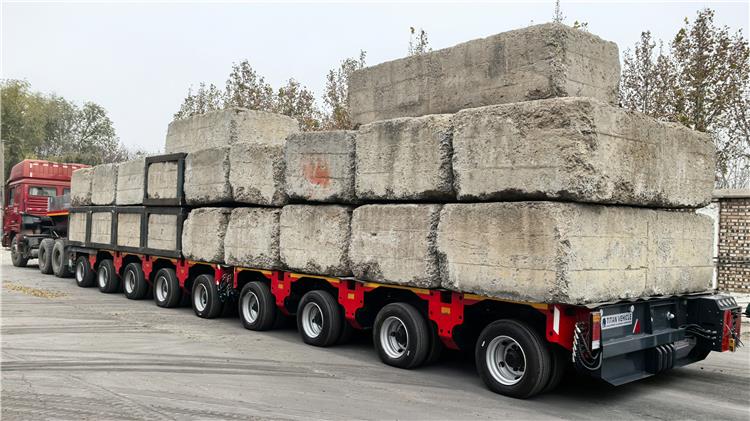

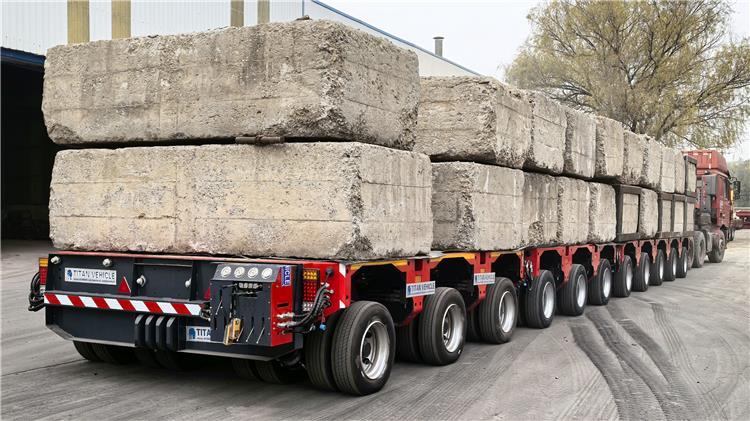

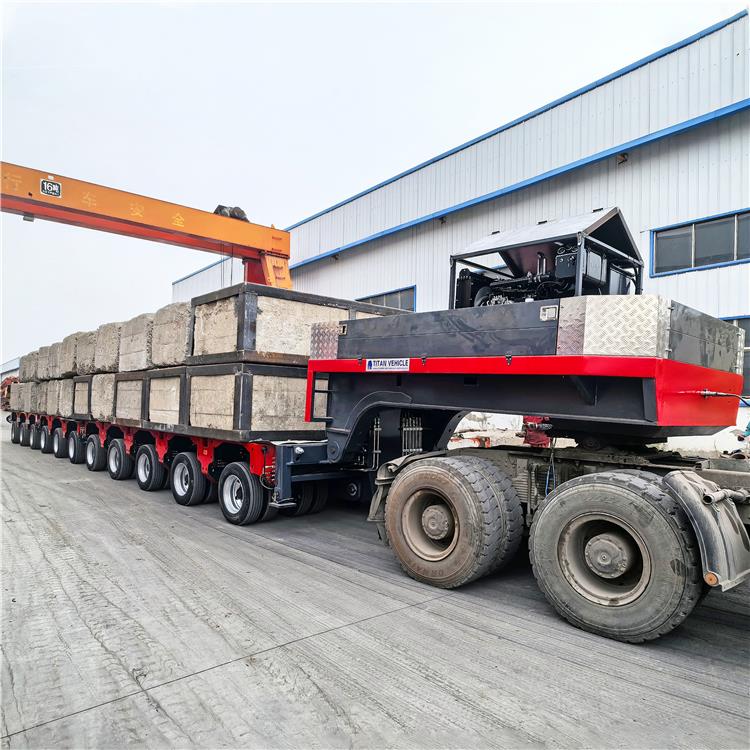

Self Propelled Modular Trailer Vehicle Price For Sale Manufacturers In Vietnam
Self Propelled Modular Trailer Vehicle Price For Sale Manufacturers In Vietnam

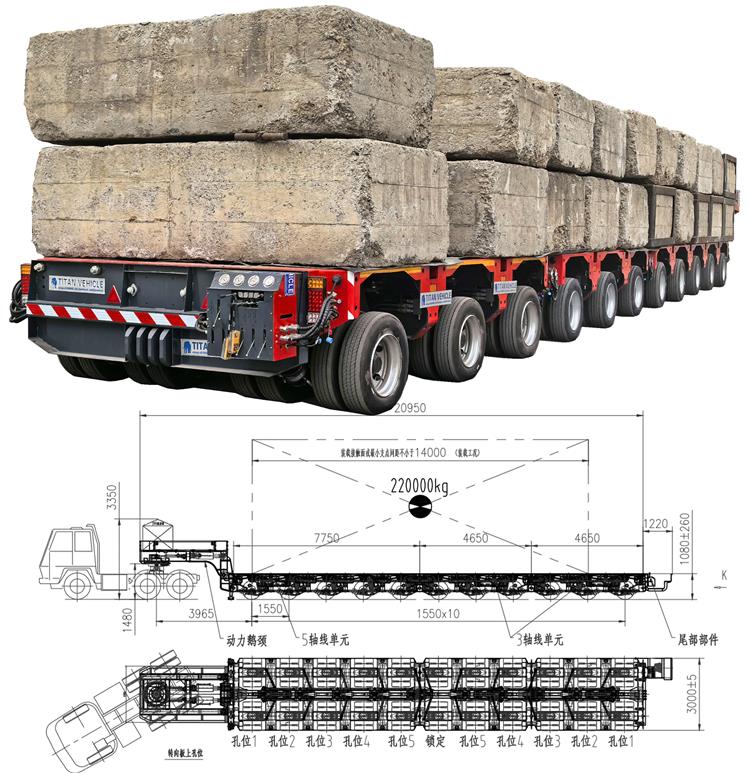

Name: self propelled modular
Dimension: 20950mm*3000mm*1080(+280/-280)mm
Usage: Transport bridge and heavy duty cargo
Max Payload: 240 tons
Tires: 88 units
Suspension type: Hydraulic lifting steering
Landing gear: Front and rear hydraulic support cylinder
King pin: 2.00 or 3.5 inch bolt-in king pin
The self propelled modular vehicle is equipped with a hydraulic suspension system as standard, which can realize independent lifting and lowering between axes, automatic leveling, and vehicle height adjustment to ensure stable load and passability. It can effectively cope with various complex working conditions, such as potholes, slopes, and undulating terrain.
The self propelled modular trailer In Vietnam can prevent the goods from vibrating violently during transportation and ensure the safety of the equipment.
The self propelled modular vehicle supports multi-axis linkage steering system, including active steering, passive steering, forced steering, etc., and has super turning radius control ability. The self propelled modular trailer In Vietnam can achieve safe passage in urban streets and narrow construction sites.
The steering system of the self propelled modular vehicle is sensitive and reduces the risk of turning accidents.
The self propelled modular trailer In Vietnam uses high-strength weather-resistant steel with a service life of more than 15 years.
The body structure and welding process of the self propelled modular vehicle have passed multiple international standards to ensure manufacturing quality. Equipped with a wireless remote control system, the driver can remotely operate steering, braking, suspension adjustment and other functions to improve the convenience of operation.
