The sany concrete pump utilizes a high-power engine and a proprietary hydraulic system, enabling stable, continuous, and high-pressure concrete delivery. The sany concrete pump price pumping system boasts high efficiency and low energy consumption, making it easily suitable for high-rise buildings, large-volume concrete projects, and long-distance delivery operations.

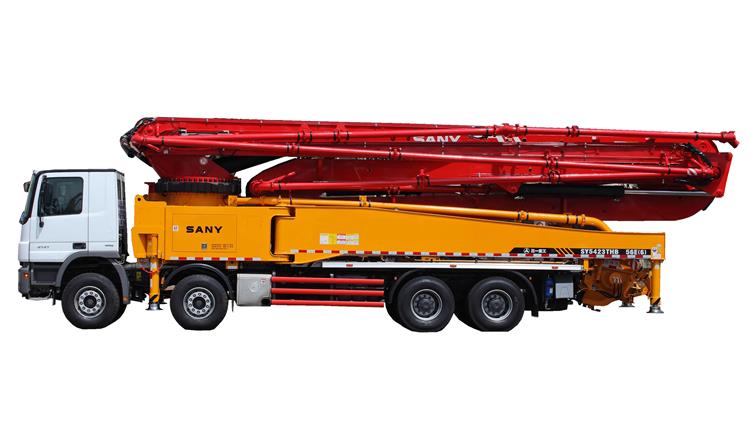

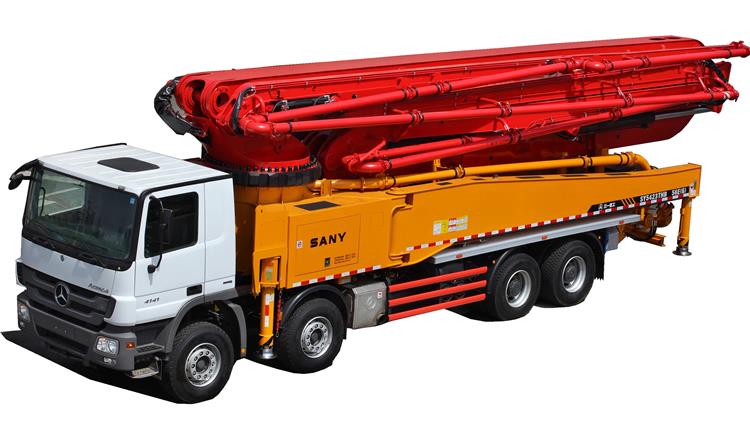

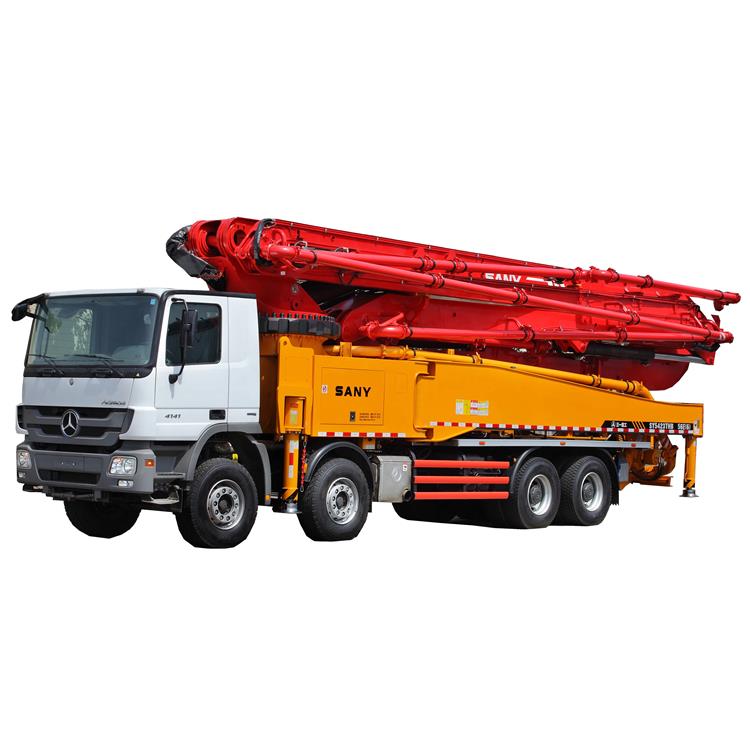

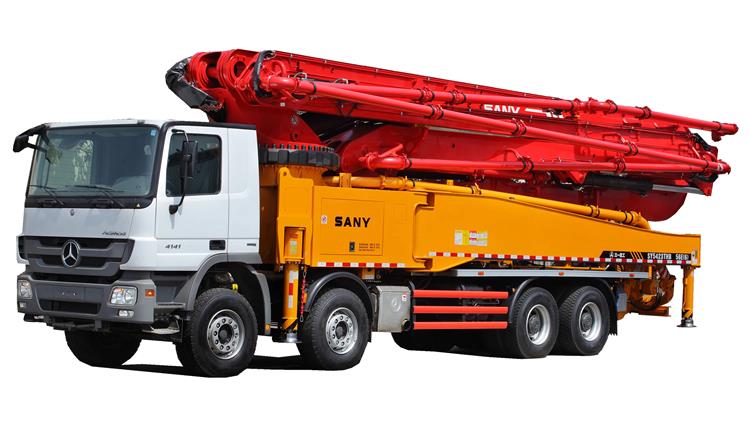

Sany Concrete Pump Price For Sale In Ghana
Sany Concrete Pump Price For Sale In Ghana
Sany Concrete Pump Price For Sale In Ghana
Boom
Vertical reach: 56 m
Horizontal reach: 51m
Depth reach: 36.6m
Unfolded reach: 15.2m
Rotation: ±360°
Front outrigger spread L-R: 9470 mm
Rear outrigger spread L-R: 12530 mm
End hose length: 3m
End hose diameter: 125 mm
Pipeline size: 125 mm
Pumping system
Theoretical output: 200 m²/h (137 m²/h)
Theoretical pressure: 8.3 MPa (12 MPa)
Delivery cylinder diameter: 260 mm
Stroke length: 2100 mm
Hydraulic system: Open
Hydraulic system oil pressure: 32MPa
Oil tank capacity: 610L
Water tank capacity: 600 L
Chassis
Brand: BENZ
Model: Arocs 4140
Engine type: OM460LA.Ш/4
Engine max net power: 290/1600 kW/rpm
Emission standard: Euro I
Capacity of fuel tank: 390 L
Displacement: 12.8 L
Max.speed:90 km/h
Functions
Agitator rotation, 2 direction
Single-button double pistion return
Single-button high/low pressure switch
Auto-lubrication for core pump
Safety
Mushroom button for horn, yellow
Emergency stop
Hopper plate
Cleaning
Sponge balls
High flow rate water pump: 50L/min @ 1.3Mpa
Others
Remote control System, wired (optional)
Industrial display control screen
Operating manual
MachineLink+ APP/web connected
7x24 service with no worry
The sany concrete pump for sale is equipped with an advanced electronic control system and SANY's patented intelligent distribution valve design, enabling precise pressure regulation and flow control. The intelligent monitoring system monitors operating status in real time and automatically optimizes pumping parameters, reducing the risk of pipe blockage and improving construction efficiency and safety.
Key components of the sany concrete pump, such as the S-valve, piston, wear plate, and eyeglass plate, are manufactured from high-strength alloy materials, offering long wear resistance and life. The sany concrete pump price utilizes internationally leading materials and heat treatment processes, significantly extending the overall equipment life and reducing maintenance costs.
The Sany concrete pump for sale hydraulic system utilizes a closed circuit and energy recovery technology, significantly reducing energy loss. The engine and hydraulic tank design meet international emission standards, resulting in low noise and fuel consumption, making it suitable for urban construction environments.
The Sany Concrete Pump is equipped with a user-friendly operation panel and wireless remote control for flexible and convenient operation. Multiple safety protection mechanisms (including overload protection, oil temperature alarm, and automatic pressure relief system) ensure the safety of construction personnel and equipment.
Sany Concrete Pump Price offers a full range of products, from small trailer pumps to large boom pumps, with boom lengths ranging from 24 meters to 68 meters, allowing for flexible selection based on different construction site requirements.
