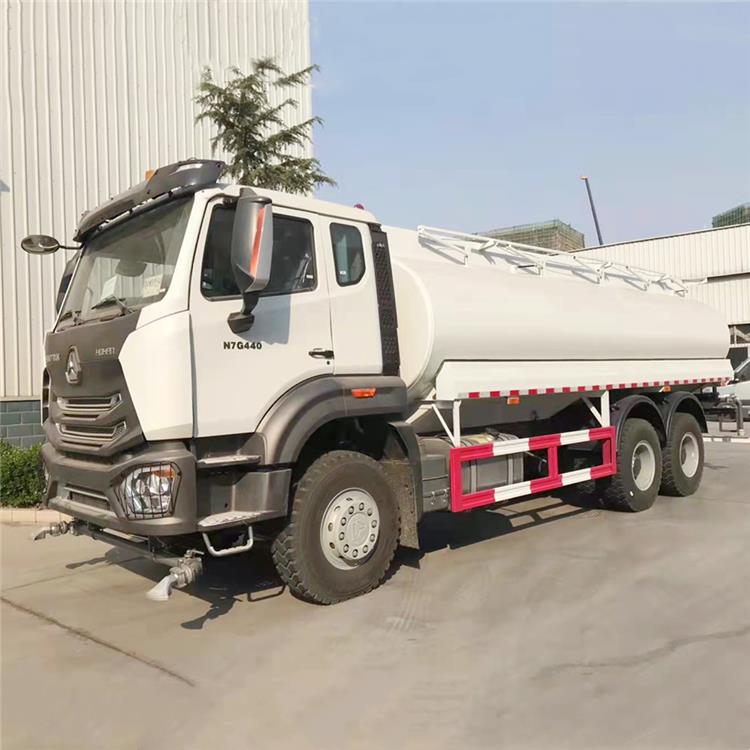

Hohan 20CBM Water Tank Truck

Hohan 20CBM Water Tank Truck

1 2 3 4 5
USD

Hohan 20cbm water tank truck, the most common use is road cleaning. A sprinkler is mainly used for water or drugs spraying in green belts and large gardens on both sides of roads.

Product Description:

Heavy-duty Hohan 20cbm water tank truck installed with 6 cylinder engine. Stronger power, more suitable used in rough road.

The Hohan 20cbm water tank truck uses 5 mm thick carbon steel tanker body materials. Keep the truck more Strong and more durable. The heavy-duty Howo 6x4 water tank truck driving type optional is 4X2, 6X4, 8X4 with a capacity from 10000 liters to 30000 liters.

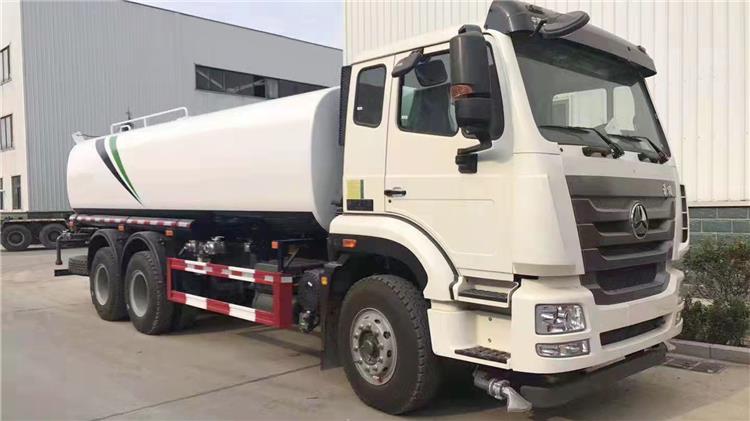

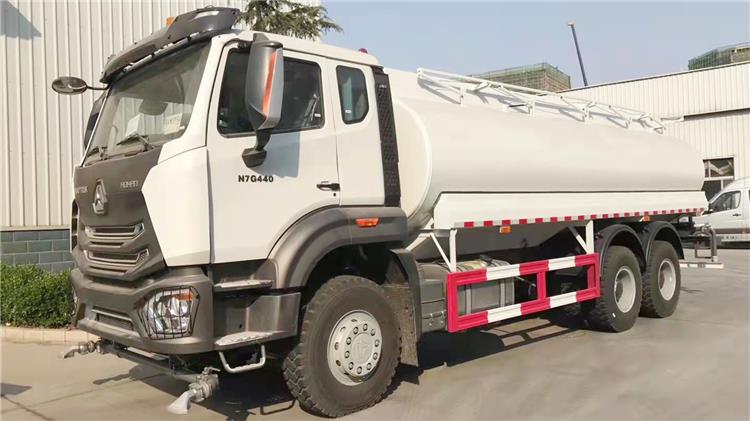

Hohan 20CBM Water Tank Truck 6x4 for Sale In Nigeria

Hohan 20CBM Water Tank Truck 6x4 for Sale In Nigeria

Hohan 20CBM Water Tank Truck 6x4 for Sale In Nigeria

Hohan 20CBM Water Tank Truck 6x4 for Sale In Nigeria



Specification:

Driving Type: Left Hand Driving (Right Hand Driving is optional)

Cabin: HW76, with one sleeper and  two seats, 2-arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse stabilizer, with 4-point support fully floating suspension + shock absorber.

Engine

Make: SINOTRUK, Diesel 4-stroke direct injection diesel engine

Emission Standard: Euro 2, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling

Displacement: 9.726 L

Transmission: HW15710, 10F & 2R, with PTO

Ratio: 14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2)

Steering: ZF power steering, model ZF8118, hydraulic steering with power assitance

Front Axle: HF, 1x7000 KGS, Steering with doubleT-cross section beam

Rear Axle: MCY13, 2x13000 KGS, Pressed axle housing, central single reduction with hub reduction and with differential locks between wheels and axles.

Ratio: 4.11

Propeller Shaft: Double universal joint propeller shaft with gear-shaped coupling flange

Chassis

Frame: U-profile parallel ladder frame with section of 300x80x8mm, and reinforced sub-frame all cold riveted cross members

Front suspension:10 semi-elliptic leaf springs, hydraulic telescopic double-action shock absorbers and stabilizer

Rear suspension:12 leaf semi-elliptic springs, bogie spring and stabilizer

Brake

Service brake: dual circuit compressed air brake

Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels

Auxiliary brake: engine exhaust brake

Electrics

Operating voltage: 24 V, negative grounded

Starter: 24 V, 5.4 Kw

Alternator: 3-phase, 28 V, 1500 W

Batteries: 2 x 12 V, 165 Ah

Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light

Tires: 315/80R22.5 tubeless tires with one spare tire.

Fuel Tank: 400 L

Tank Body: 18 Cubic Meters, with front and rear sprinkling system

Overall Dimension: 9500*2550*3200 mm



About SINOTRUK:

TITAN is authorised distributor of SINOTRUK, We produce New SINOTRUK Howo Trucks according to your order.

SINOTRUK is China's first heavy duty truck manufacturer, initially founded in 1956 and the cradle of China's heavy duty truck industry. SINOTRUK once manufactured China's first heavy duty truck, and it is China's first company to comprehensively introduce foreign heavy duty truck manufacturing technology of complete vehicle.

Today, SINOTRUK has developed into China's largest heavy duty truck manufacturing base and made significant contributions to the development of China's heavy duty truck industry and national economic growth.

SINOTRUK has been adhering to implementing independent innovations, carrying out its leading strategy in technologies and building its core competitiveness with intellectual property rights. It has the most patents in China's automotive industry.

SINOTRUK’s main truck models include HOWO, HOWO A7, HOHAN, main truck types include truck tractor, tipper truck, cargo truck, truck chassis, fuel tanker truck, water tank truck, and other special trucks.
