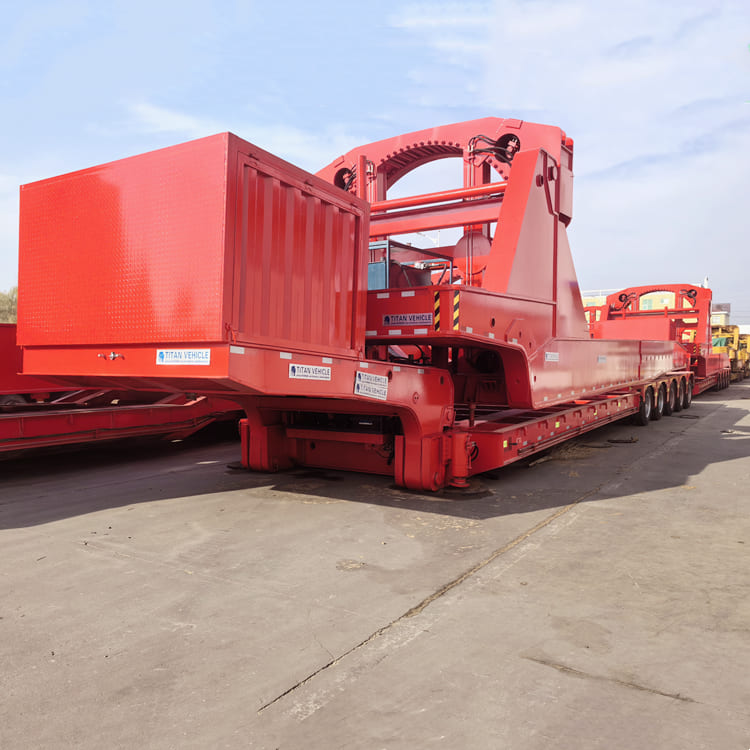

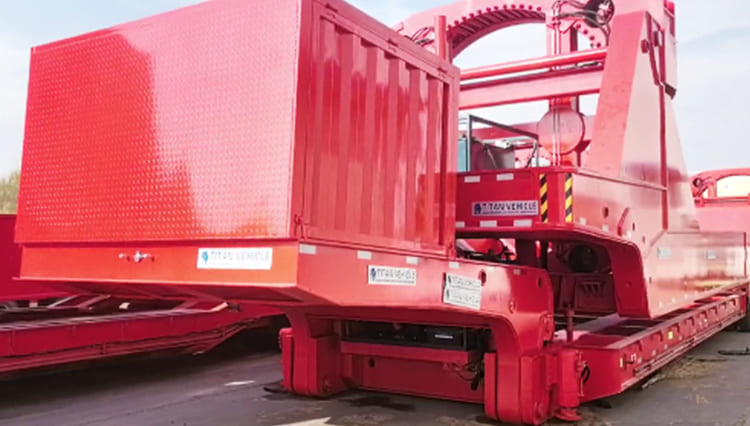

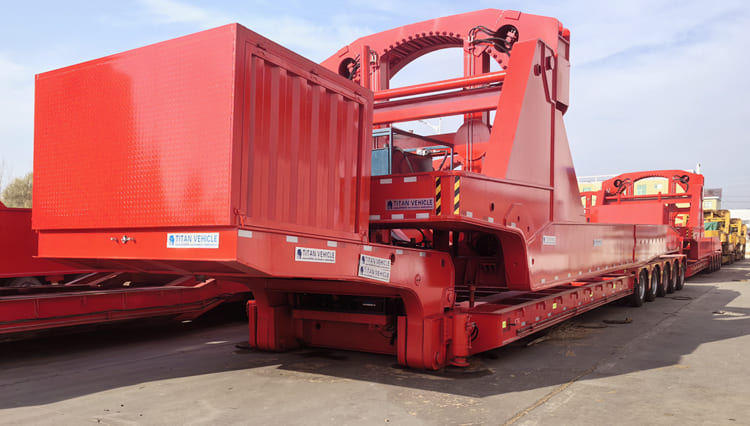

The blades wind turbine, as a subdivided variety of special vehicles, is mainly used for transporting wind turbine blades. With the continuous increase in wind power generation projects, the demand for the transportation of wind turbine blades is also growing.
Thanks to blades wind turbine special design and structure, the wind turbine transportation can safely and efficiently transport wind turbine blades to the designated location, providing a strong guarantee for the smooth implementation of wind power generation projects.
Blades Wind Turbine Transportation for Sale in Ghana
Blades Wind Turbine Transportation for Sale in Ghana
Blades Wind Turbine Transportation for Sale in Ghana
Blades Wind Turbine Transportation for Sale in Ghana
Blades Wind Turbine Transportation for Sale in Ghana
Loading capacity: 23.5 Tons
Max rotation angle: 360°
Blade elevation range 0°-47°
Blade pitch angle: 0°-360°
Horizontal rotation angle of adaptor: 0°-360°
Counterweight iron block of adaptor rack: 0-16t
Hydraulic station: 40KW Four-cylinder Diesel Engine
Tail: Slewing support cylinder with tooling at the tail (horizontally telescopic); with pusher
Diameter of lifting cylinder: 320mm; five-axis tire 8.25R16
The wind turbine transportation blades are precision injection-molded using new processes and are equipped with optimized aerodynamic shape designs and structural designs, greatly increasing the wind energy utilization coefficient. Most of the blades are internally equipped with copper/aluminum sleeves. When the bolts are tightened, the nylon fibers will not be damaged, effectively preventing the blades from deforming or breaking.
At the same time, the blades wind turbine transportation blades and the hub adopt a tight-fitting concave-convex groove design, with a more precise fit, ensuring a more stable rotation of the wind wheel. This carefully designed wind turbine transportation blade not only has a low starting wind speed and high wind energy utilization rate but also has a small volume, light weight, beautiful appearance, and low operating vibration, laying the foundation for the efficient operation of the windmill.
The blades wind turbine casing is integrally formed by die-cast aluminum alloy using molds and is equipped with a customized bearing rotating body, which greatly enhances the typhoon resistance and ensures safe and reliable operation. The connections between the blades and the hub all adopt stainless steel locknut fastening designs, which not only enhance the corrosion resistance but also ensure that the connection parts do not loosen during transportation, strongly guaranteeing the normal operation of the fan.
The generator adopts an advanced permanent magnet rotor alternator with a special stator design, effectively reducing the generator resistance torque and thus reducing the starting wind speed; at the same time, the wind turbine transportation wind wheel and the generator have a good matching characteristic, further ensuring the reliability of the unit operation.

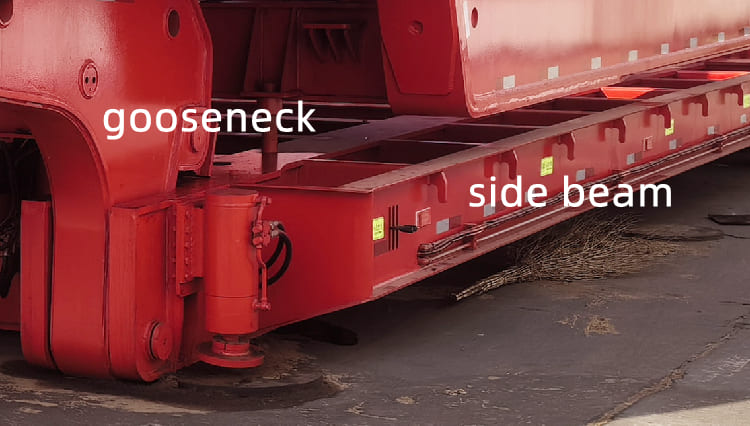

The blades wind turbine transportation for sale in Ghana is usually a semi trailer. Due to the extremely long wind turbine blades transports, blades wind turbine transportation adopts a pull-out structure. Multiple sections in the front can be pulled out, and one section at the back can be pulled out, with a maximum length of up to 45 meters. This pull-out structure design makes the blades wind turbine transportation highly flexible when loading wind turbine blades of different lengths.

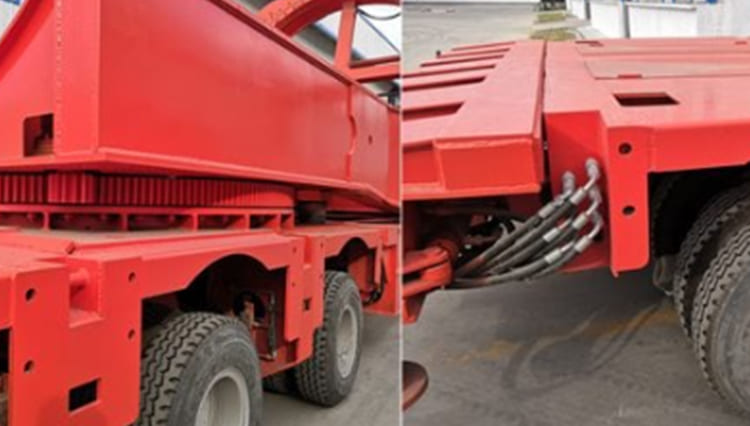

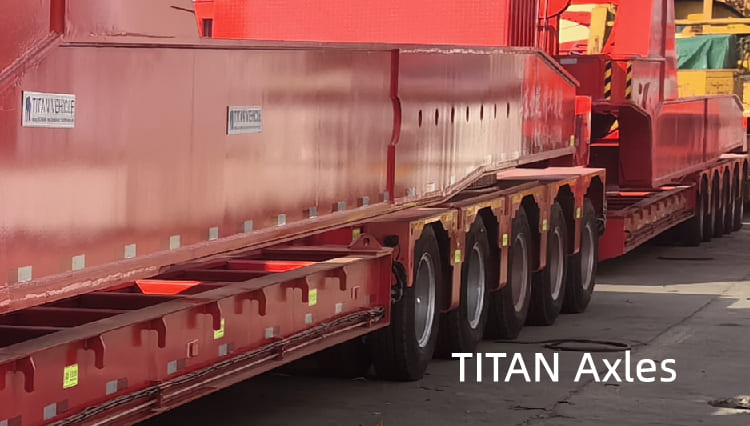

Because the whole blades wind turbine is relatively long, in order to ensure driving safety and flexible turning, hydraulic control steering is generally adopted. In terms of the axle system, blades wind turbine can better distribute the load of the vehicle and improve driving stability.
Before the blades wind turbine transportation is shipped overseas, TITAN will take a series of strict protective measures. Conduct a comprehensive inspection of the body of the windmill to ensure that the body structure is free of damage and deformation. For key connection parts, such as the connections of the pull-out structure and the connections between the hub and the blades, tighten them again and apply protective grease to prevent rust caused by humid air during sea transportation. At the same time, fix the whole blades wind turbine. Use professional fixing devices to firmly fix the windmill on the transport ship to prevent displacement during the voyage due to the dump of the ship.
