The folding gooseneck trailer for sale is welded from high-strength low-alloy steel, with thickened key load-bearing areas to prevent deformation when transporting heavy cargo.
The gooseneck is reinforced with ribs to withstand the concentrated loads of large steel structures, machinery, and bridge components, while also increasing the vehicle's torsional rigidity and ensuring safe transportation.

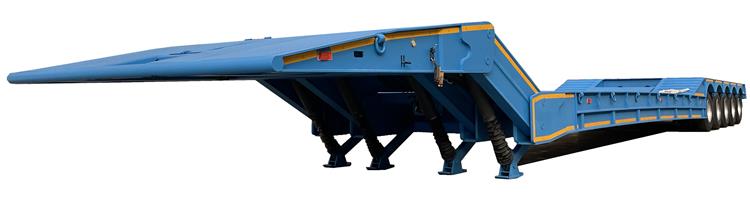

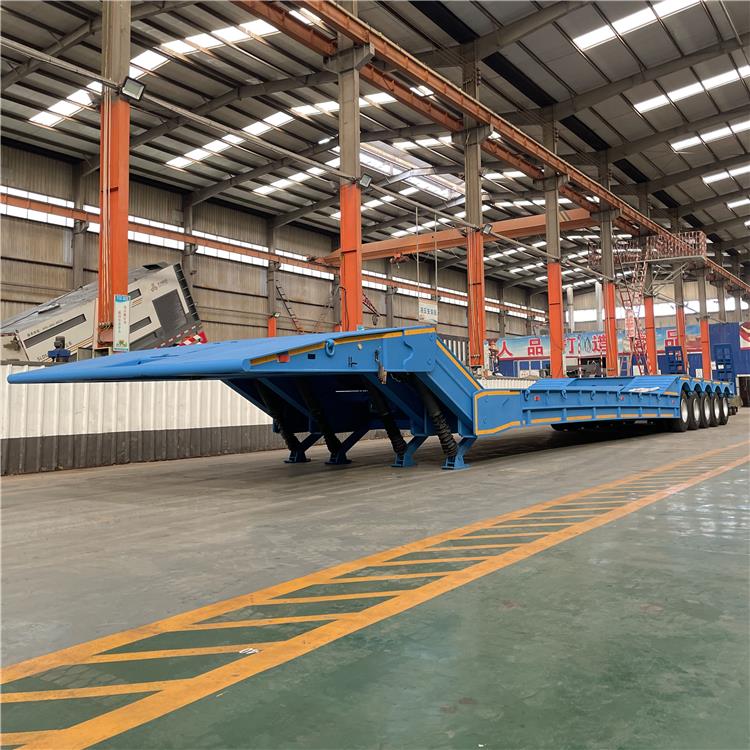

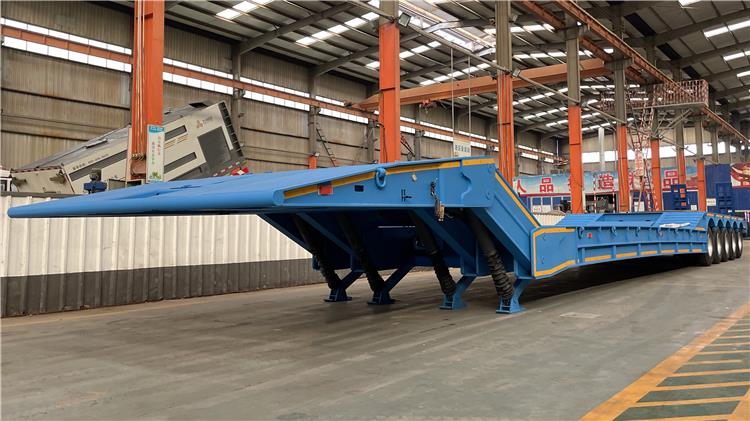

5 Axle Folding Gooseneck Trailer for Sale In Nigeria Lagos
5 Axle Folding Gooseneck Trailer for Sale In Nigeria Lagos
5 Axle Folding Gooseneck Trailer for Sale In Nigeria Lagos
5 Axle Folding Gooseneck Trailer for Sale In Nigeria Lagos
Dimension: 18000mm x 3800mm x 1800mm
Working platform: 14000*3800MM
Loading capacity: 100 TONS.5 AXLES,16TONS.

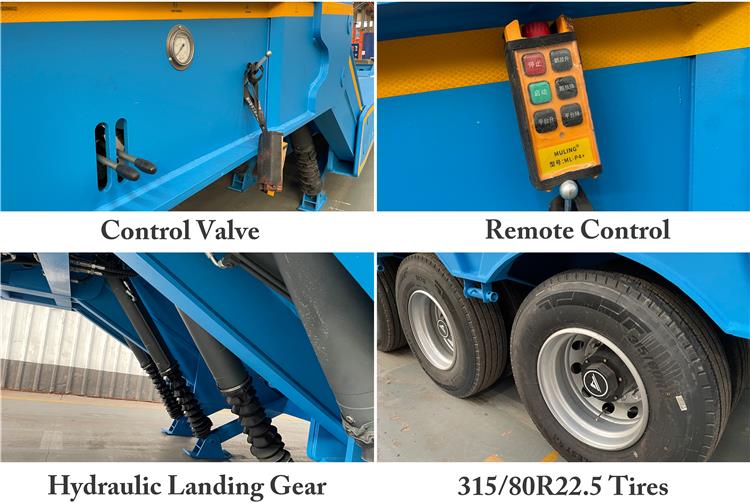

Gooseneck: hydraulic folding gooseneck.

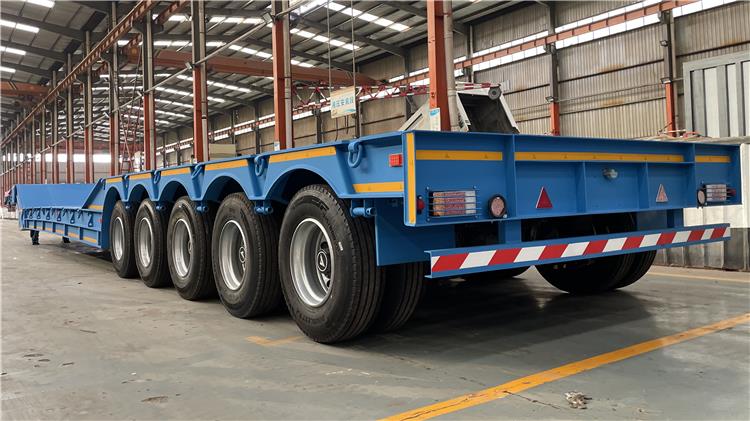

Axle: 5 Axle
Tire: 20 units,315/80R22.5
Suspension: Mechanical suspension
Spring leaf: 120(W)mmx16(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Hydraulic cylinder: 12KW diesel engine with hydraulic station
Light: LED light
Voltage: 24V
Tool box: 1 set
The multi-axle independent hydraulic suspension design automatically adjusts the load pressure on each axle according to the cargo weight, ensuring balanced load distribution. The suspension adapts to uneven roads, reduces vehicle sway, and protects heavy steel structures or other equipment from shock and vibration during transportation.
The folding gooseneck trailer for sale is equipped with high-load-bearing tires. Combined with a multi-axle layout, the load is evenly distributed across each axle, significantly increasing the vehicle's load capacity. The optimized tire material and tread pattern ensure both load-bearing performance and wear resistance, enhancing transportation efficiency and longevity.
The cargo platform features a non-slip tread pattern or coating to improve friction, preventing steel structures or heavy machinery from slipping during loading and transportation. The platform thickness and reinforcement beam layout are carefully calculated to accommodate concentrated and distributed loads, meeting the transport needs of various large steel structures.
The four-axle or multi-axle folding gooseneck design enables folding gooseneck trailers for sale to carry loads of tens or even hundreds of tons, enabling them to transport heavy cargo such as large steel structures, pipelines, machinery, and bridge sections. The hydraulic suspension, steel structure, and axles work together to evenly distribute the load, ensuring safe and stable transportation.
