In Saudi Arabia, a country dominated by large-scale infrastructure construction, mineral resource development and energy engineering, efficient and safe transportation of heavy equipment is one of the key factors for project success.
Low loader trailer for sale has become one of the indispensable engineering transportation equipment in the Saudi market with its super load-bearing capacity, low center of gravity design and excellent road adaptability.

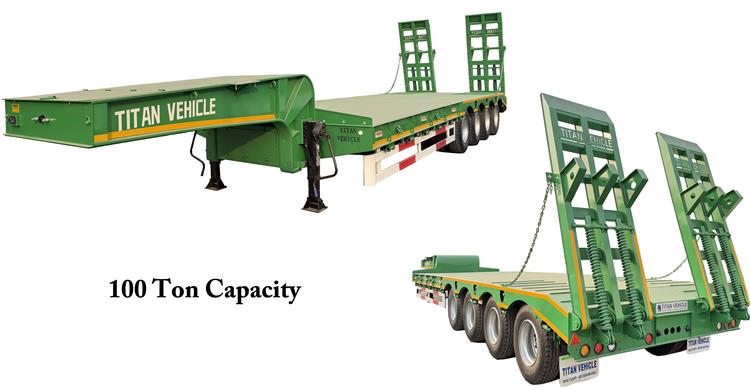

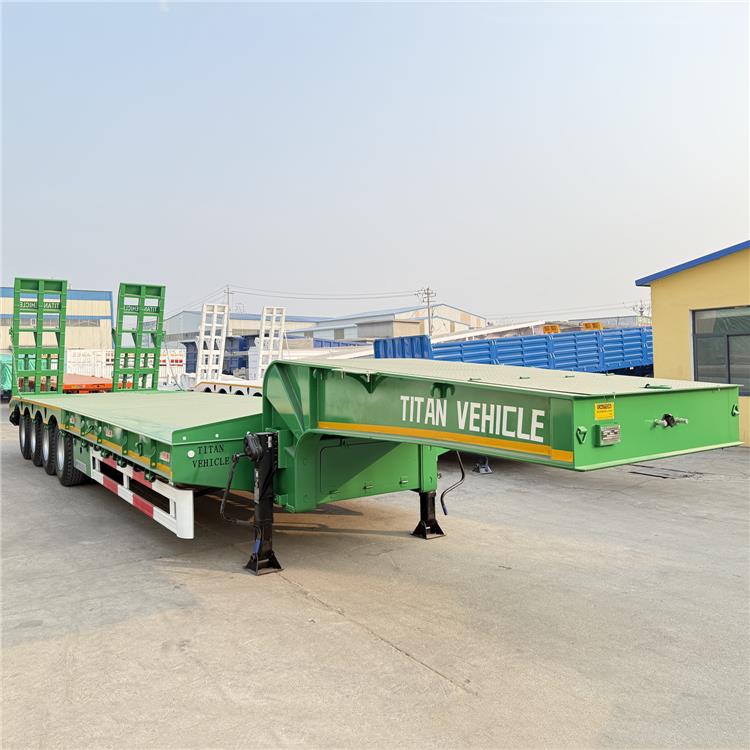

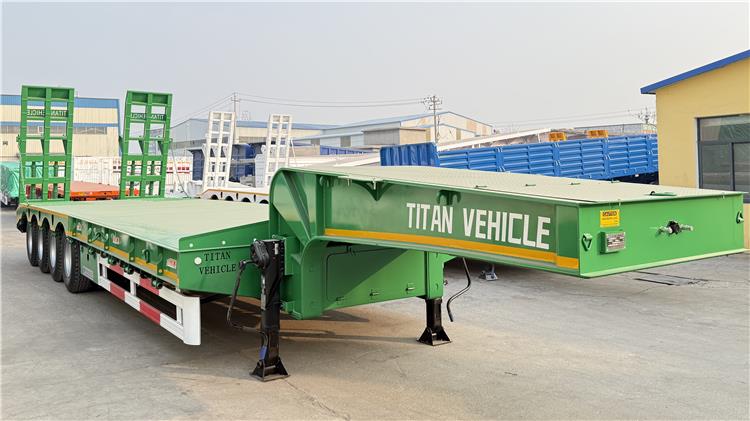

4 Axle Low Loader Trailer for Sale In Saudi Arabia
4 Axle Low Loader Trailer for Sale In Saudi Arabia
4 Axle Low Loader Trailer for Sale In Saudi Arabia
Overall dimension: 15800mm * 3000mm *3400mm
Loading capacity(T): 100T
Axle: 13T/16T, FUWA Brand

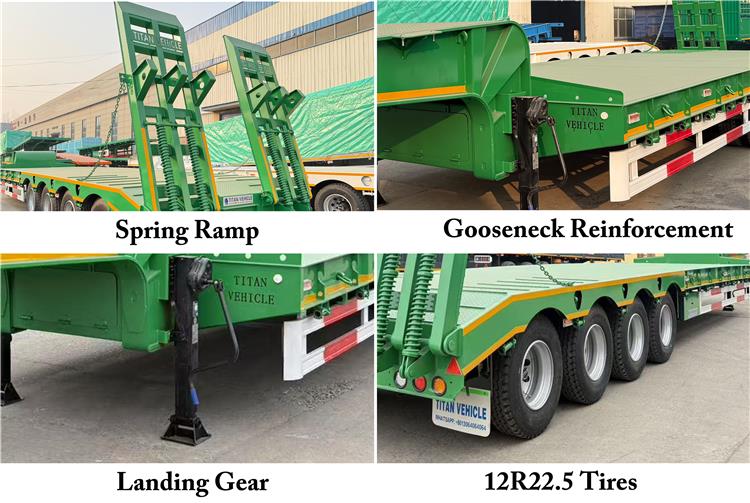

Tire: 16pcs,12R22.5 Tires
Suspension: Mechanical suspension
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: TITAN brand
Main beam: Height: 500mm, Upper plate: 20mm, Middle plate: 12mm, Lower plate: 20mm, Material: Q345B steel.
Bottom Platform: 5mm thick checkered plate

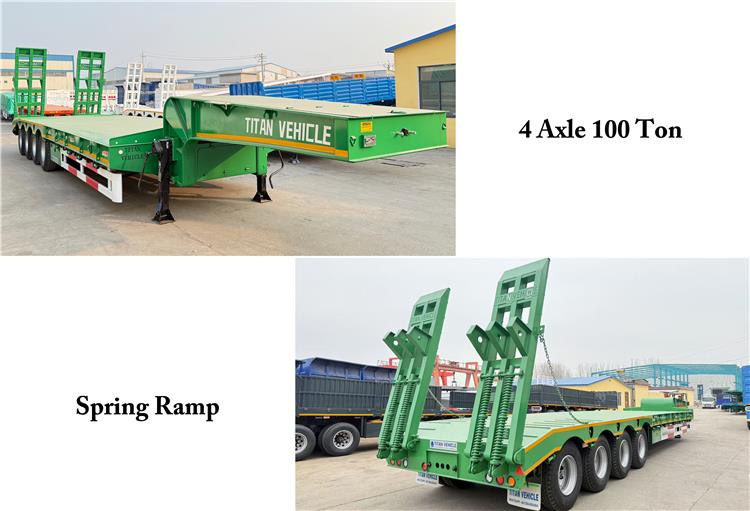

Ramp: mechanical type

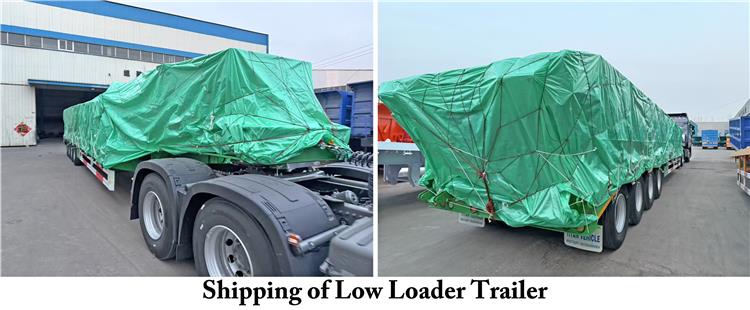

Low loader trailer for sale are usually transported in bulk. We will first spray the low loader for sale with a thick layer of wax, and then cover the body with a rain cloth to reduce the corrosion of the low loader trailer for sale by seawater.
The frame of low loader for sale is made of high-strength Q550/Q690 material and is processed through multiple welding reinforcement processes to ensure that it will not deform or break in the high-temperature desert environment for a long time, and the load-bearing capacity is as high as 80~150 tons.
The ground clearance of the main platform of low loader for sale is usually 850-1200mm, which is much lower than that of ordinary trailers. It can easily carry crawler equipment, excavators, bulldozers, wind turbine blades, transformers and other super-high goods. It has stronger stability in rugged roads and mountain roads in Saudi Arabia, reducing the risk of rollover during transportation.
Low Loader Trailer is widely used in transporting crawler cranes, wheeled excavators, pavers and other construction machinery.
Low loader for sale can choose hydraulic ladders, folding ladders, and hydraulic lifting platforms to facilitate the self-loading and unloading of non-powered equipment. ABS system, air suspension, hydraulic steering axle, tire protection cover, etc. can also be installed to adapt to local laws and different road conditions in Saudi Arabia.
