3 Axle dump semi trailer is a big trailer that usually lifts when dumping its hall in a chosen location. 3 Axle Tip Trailer will help you to carry and offload bulk goods in a very easy and efficient manner, your operations will be highly affordable.

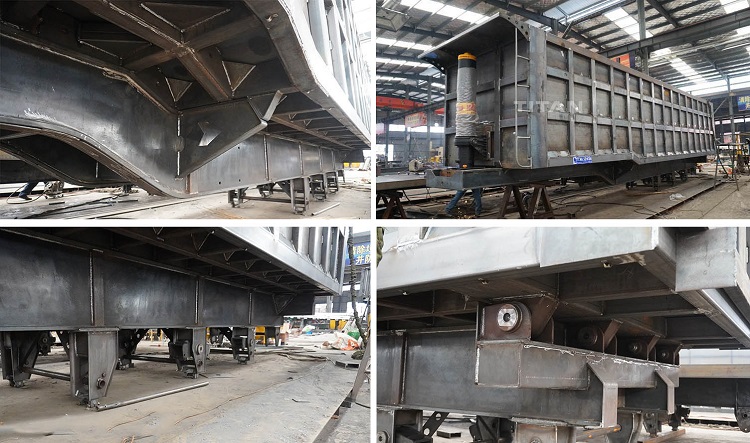

TITAN 3 Axle dump semi trailer adopt Submerge-arc welding, The protective effect of the slag insulation when isolated air is good, the welding parameters could keep stable by automatic adjustment, the weld composition is stable and the mechanical performance is better.

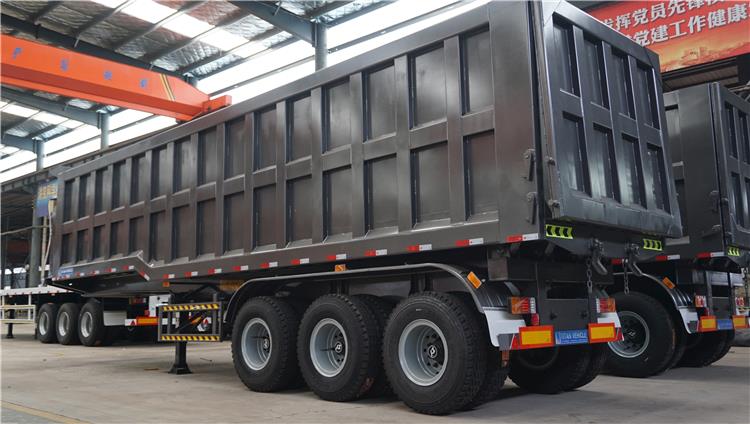

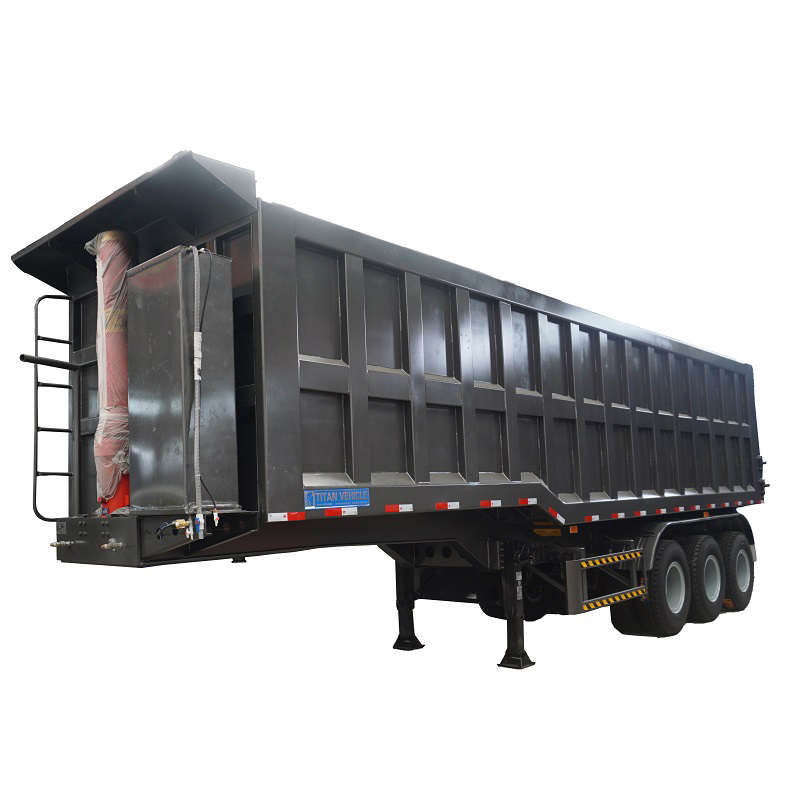

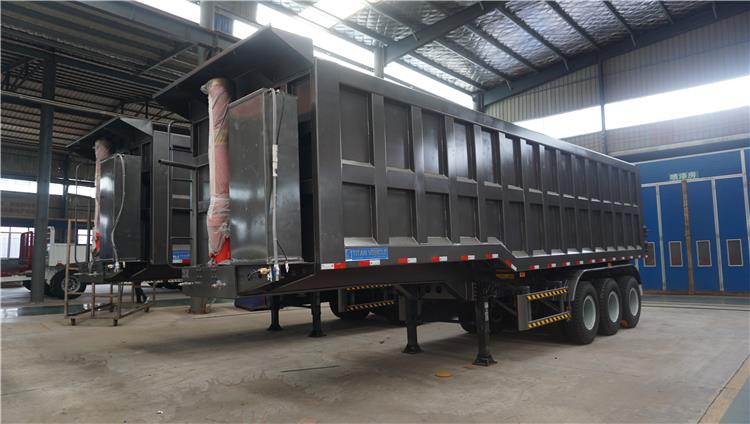

3 Axle 40 Ton Dump Semi Trailer for Sale In Zimbabwe
3 Axle 40 Ton Dump Semi Trailer for Sale In Zimbabwe
3 Axle 40 Ton Dump Semi Trailer for Sale In Zimbabwe
Dimension: 8500mmx2500mm x3950mm ( inside dimension )
Main beam: Height: 480mm, Upper plate: 14mm, Middle plate: 8mm, Lower plate: 14mm, Material: T700 steel.
Bottom Platform: 4 thick checkered plate
Side wall thickness: 4mm
Total volume(m³): 40m³
End plate: 8mm
Lifting System: Full set of HYVA lifting cylinder
Axle: 13T/16T, FUWA / BPW / TITAN Brand
Rim: 8.0-20 or 9.00-20
Tire: 8.25R20/10.00R20/11.00R20/12R22.5
Suspension: Mechanical suspension
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
Voltage: 24V
Tool box: 1 set

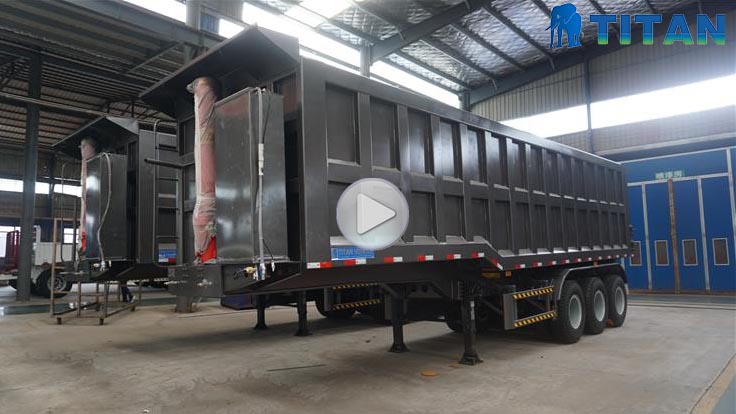

3 Axle 80 Ton Tip Trailers details video
Through these videos, you can learn about different types of semi tipper trailers, as well as the process, testing, packaging and customer feedback, etc.
