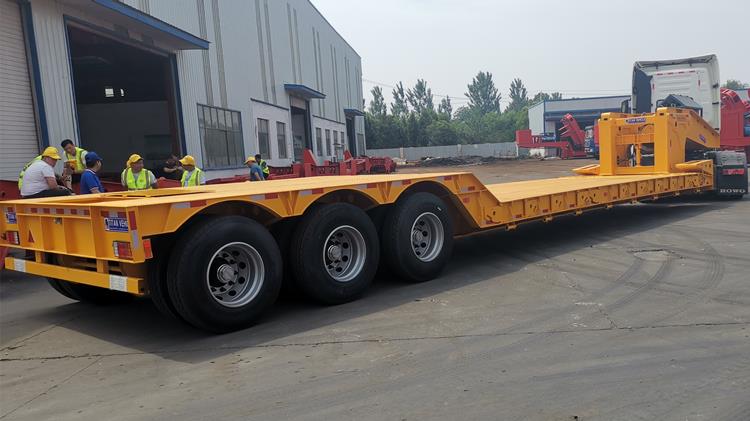

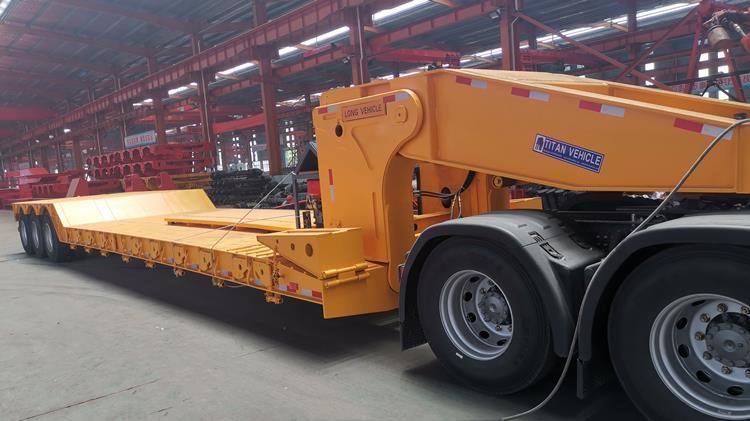

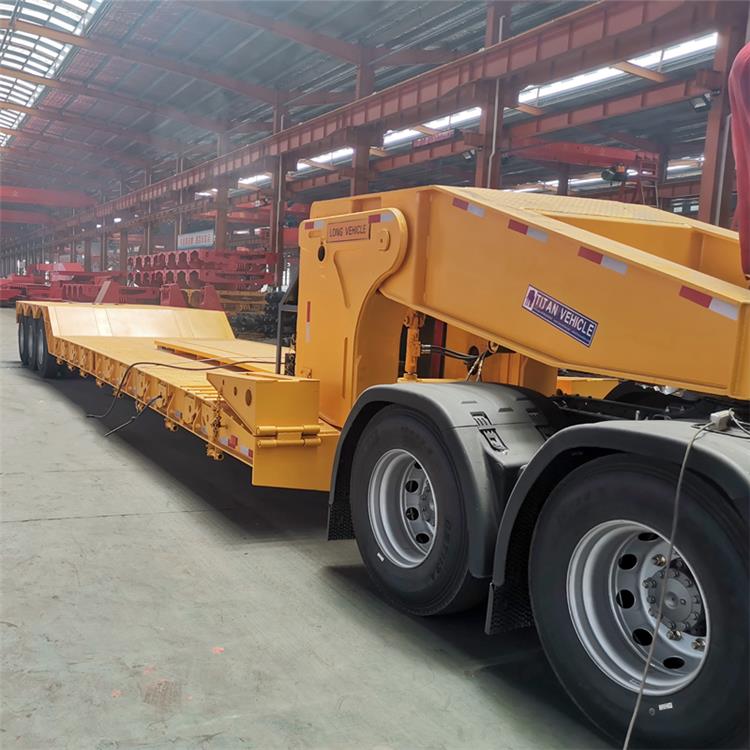

TITAN 100 Ton hydraulic removable gooseneck for transport excavator and construction equipment, large machinery transportation. TITAN 100 Ton hydraulic removable gooseneck adopts reinforced the gooseneck and upper and lower plate by double layer.
100 Ton hydraulic removable gooseneck main beam of TITAN is made of HG60 high-strength structural steel. The yield strength of HG60 steel is ≥ 620MPa, which is more durable and stronger than ordinary steel. Its bearing capacity is 5 times of that of Q345 steel trailer.
100 Ton Hydraulic Removable Gooseneck Trailer for Sale Price In Nigeria
100 Ton Hydraulic Removable Gooseneck Trailer for Sale Price In Nigeria
100 Ton Hydraulic Removable Gooseneck Trailer for Sale Price In Nigeria

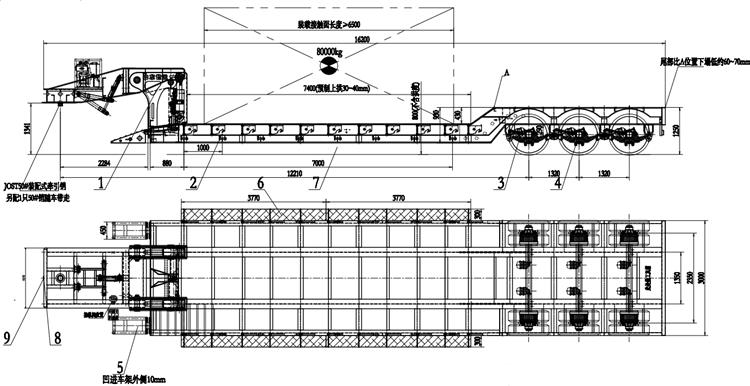

Overall dimension：17900mm * 2500+250*2mm *2200mm(platform 800mm)
Loading capacity: 150 ton
Axles：3 axles
Tire: 12 units, 8.25R20/10.00R20/11.00R20/12R22.5
Suspension: Mechanical suspension or air suspension
Spring leaf: 120(W)mmx16(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Tare weight: About 9.5-19T
Main beam: Height: 500mm; Width: 230mm; Side beam: 250 I-beam 10/8/10; Material: HG60 high-strength steel.
Bottom Platform: 5mm thick, checkered plate
Hydraulic cylinder: 12KW diesel engine with hydraulic station
Ramp: spring or hydraulic type
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
Voltage: 24V
Tool box: 1 set
Painting: Polyurethane paint, with long service lift, and avoid the vehicle get rust
Through this video, you can learn about different types of lowboy semi trailers, as well as the process, testing, packaging and customer feedback, etc.
