SINOTRUK Howo 371 HP Cement Mixer Truck 6X4 for Sale In Nigeria
Nigerian customer is an old customer of TITAN. The customer has purchased cement bulker tanker trailer before. The customer likes our products very much. This time the customer found us and said he needed howo 371hp cement mixer truck, so the customer wanted us to help him find the cement mixer truck that suits him.

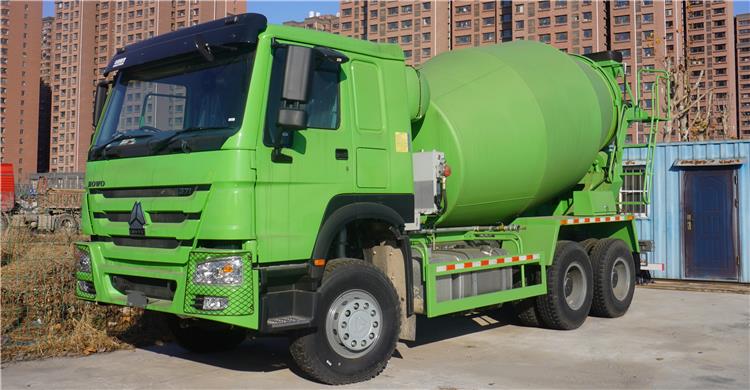

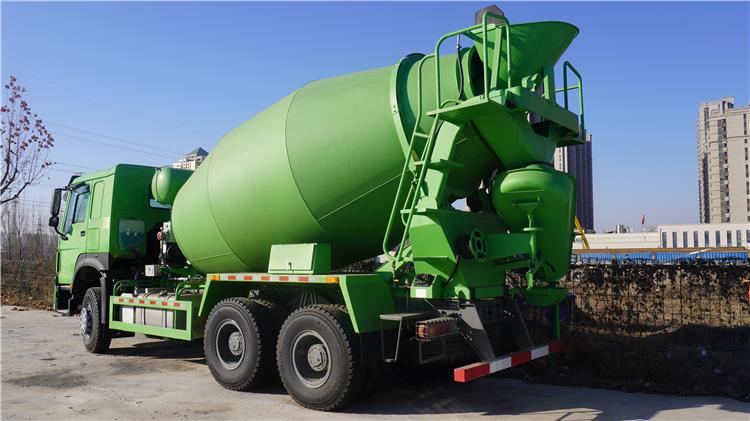

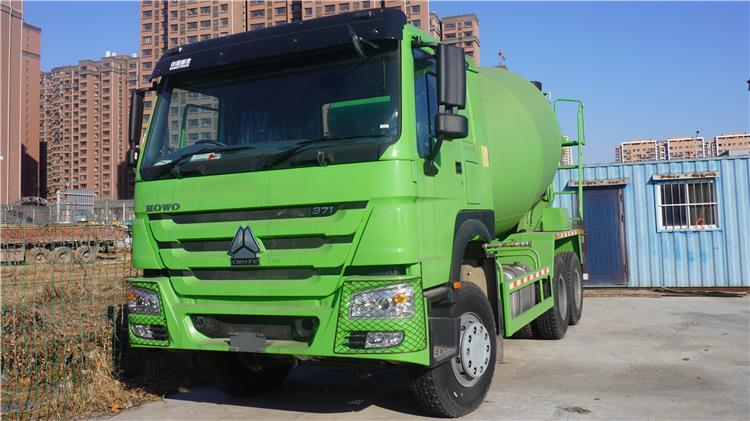

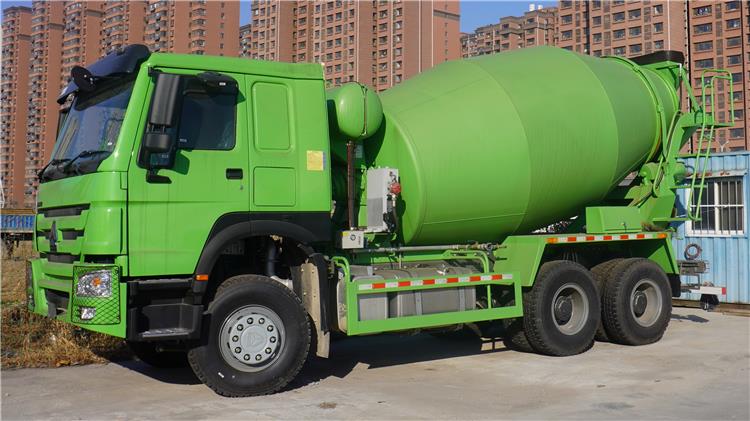

Because TITAN is an authorized dealer of Sinotruk. So we produce new howo 371hp cement mixer truck according to your order. Below is and finished howo 371hp cement mixer truck.
Howo 371hp cement mixer truck is a special truck used to transport concrete for construction; it is also often called a snail truck due to its shape. These trucks are equipped with cylindrical mixing drums to carry the mixed concrete.
During transportation, the mixer drum is kept rotating to ensure that the concrete carried does not solidify. After the concrete is transported, the inside of the mixing drum is usually washed with water to prevent the hardened concrete from taking up space and making the volume of the mixing drum less and less.
SINOTRUK Howo 371 HP Cement Mixer Truck 6X4 for Sale In Nigeria
Composition
It is composed of automobile chassis, mixing drum, transmission system, water supply device, full power PTO, front and rear brackets of mixing drum, reducer, hydraulic transmission system, feeding and discharging system, operating mechanism and other parts.
Due to technical bottlenecks, domestically produced mixer trucks with a tank volume of 3m³-8m³ use four domestically produced components, and most of the four components used for tanks with a volume above 8m³ are imported components.
Howo 371hp cement mixer truck is composed of: second-class chassis, transmission system, hydraulic system, frame, mixing tank, feeding and discharging device, water supply system, control system, human ladder and other parts. The front end of Howo 371hp cement mixer truck is connected with the reducer and installed on the front of the rack, and the rear end is supported by two rollers installed in the back of the rack through the raceway.
SINOTRUK Howo 371 HP Cement Mixer Truck 6X4 for Sale In Nigeria
Overview
The special mechanism mainly includes the power take-off, the front and rear brackets of the mixing drum, the reducer, the hydraulic system, the mixing drum, the operating mechanism, the cleaning system, etc. Its working principle.
The power of the car chassis is taken out through the power take-off device, and the variable pump of the hydraulic system is driven, and the mechanical energy is converted into hydraulic energy and transmitted to the quantitative motor. The motor then drives the reducer, and the reducer drives the mixing device. Stir.
Power take-off
Howo 371hp cement mixer truck adopts the main vehicle engine to take power. The function of the power take-off device is to take out the engine power by operating the power take-off switch, and drive the mixing drum through the hydraulic system. Reverse rotation, disconnecting power from the engine after work is over.
Hydraulic system
The engine power taken out by the power take-off (usually a rear-mounted full-function power take-off) is converted into hydraulic energy (displacement and pressure), and then output by the motor into mechanical energy (speed and torque), which provides power for the rotation of the mixing drum. power.
SINOTRUK Howo 371 HP Cement Mixer Truck 6X4 for Sale In Nigeria

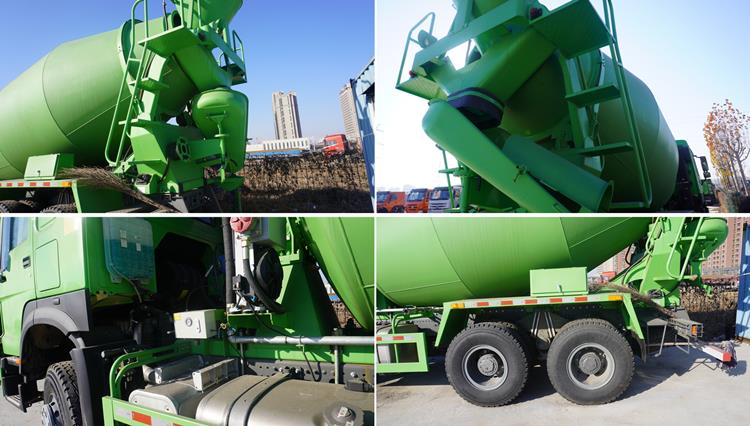

Stirring device
It is mainly composed of a mixing drum and its auxiliary supporting parts. The mixing drum is a concrete loading container. It is made of high-quality wear-resistant thin steel plate. In order to automatically load and unload concrete, its inner wall is welded with a special-shaped spiral blade.
When rotating, the concrete moves along the spiral direction of the blade, and is mixed and stirred during the continuous lifting and turning. During the feeding and transportation process, the mixing drum rotates forward, and the concrete moves inward along the blades. When discharging, the mixing drum reverses, and the concrete is discharged outward along the blades.
The rotation of the mixing drum is ensured by the hydraulic drive device. The Howo 371hp cement mixer truck with a loading capacity of 3 to 6 cubic meters generally adopts the hydraulic pump driven by the car engine through the power take-off shaft, and then the hydraulic motor is driven by the high pressure oil to drive the mixing drum.
Drive the hydraulic pump to drive the hydraulic motor. The blade is the main component in the mixing plant, and damage or severe wear can cause uneven mixing of concrete. In addition, if the angle of the blades is not properly designed, the concrete will segregate.
SINOTRUK Howo 371 HP Cement Mixer Truck 6X4 for Sale In Nigeria
Reducer
After decelerating the output speed of the motor in the hydraulic system, it is transmitted to the mixing drum.
Manipulator
Control the rotation direction of the mixing drum so that it rotates forward during feeding and transportation, and rotates reversely when discharging.
Cleaning system
The main function of the cleaning system is to clean the mixing drum, and sometimes it is also used for dry material mixing during transportation. The cleaning system also cools the hydraulic system.
Closure device
The fully enclosed device adopts rotary sealing technology, which seals the inlet and outlet of the mixer truck, and solves a series of problems such as water evaporation, mortar stratification, concrete scattering, and driving safety in traditional mixer trucks.
This kind of truck was designed with lots of advantages and features. If you want to get more information, please don't hesitate to make contact with us.
